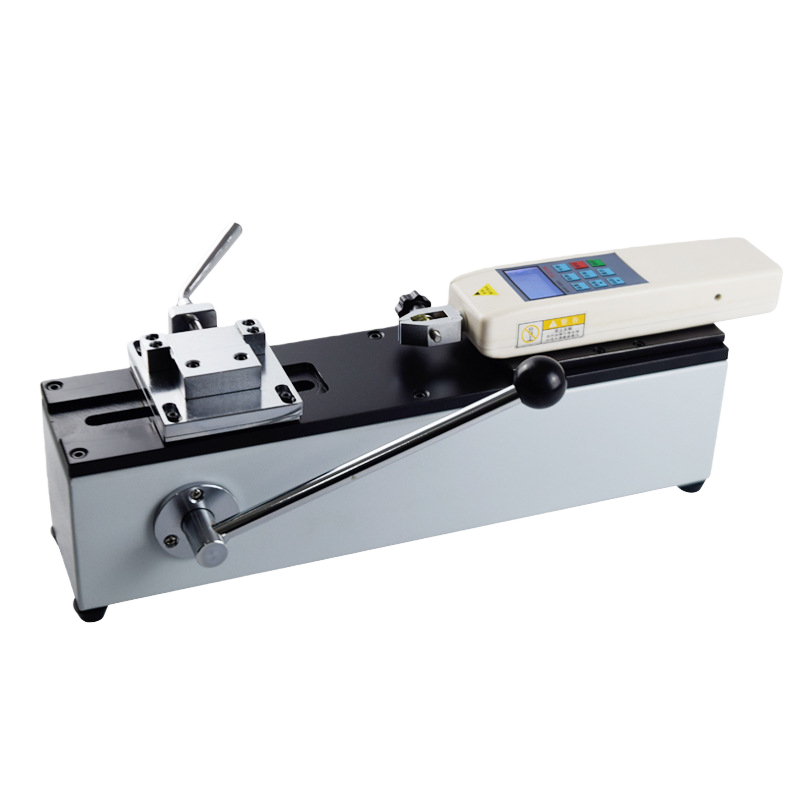

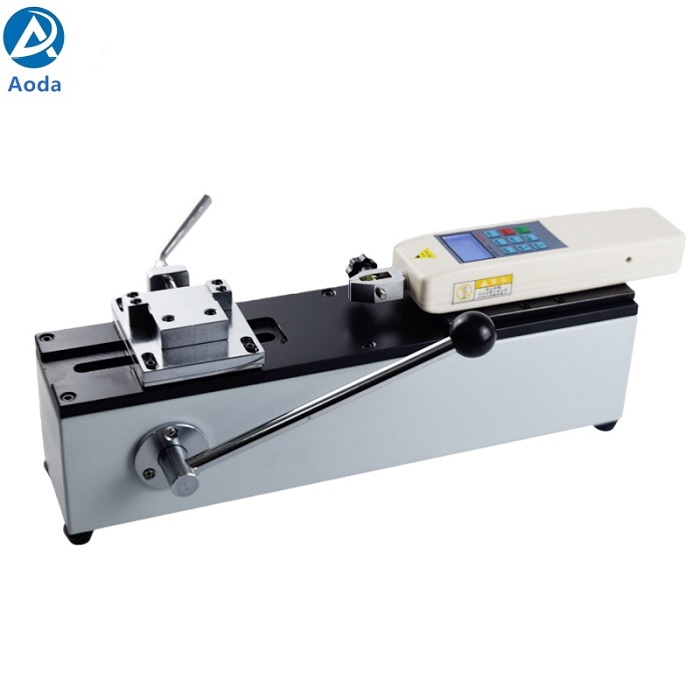

AMH Manual Horizontal Test Bench

AMH Manual Horizontal Test Bench

The manual horizontal test bench works with push-pull force gauge to do tensile and compressive load tests, insertion and extraction force tests, etc.

■ Horizontal installation;

■ Manual operation, simple and stable operation;

■ This machine can be installed on a table or desk for added stability.

• Effective stroke: 50mm;

• Maximum load: 500N;

• Length × Width × Height: 450 × 190 × 180 mm;

• Net weight: 10.6kg;

• Effective test area: 105 × 100 mm, maximum 105 × 152 mm.

Installation method of dynamometer

1. Remove the mounting strip from the force platform;

2. Connect the mounting bar to the dynamometer mounting hole 4-M3 firmly;

3. Install the mounting bar and dynamometer assembly on the force platform.
