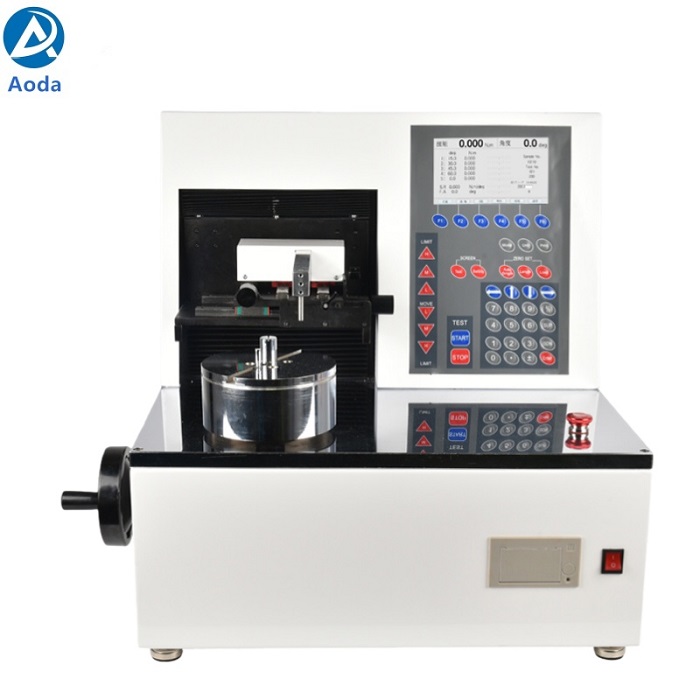

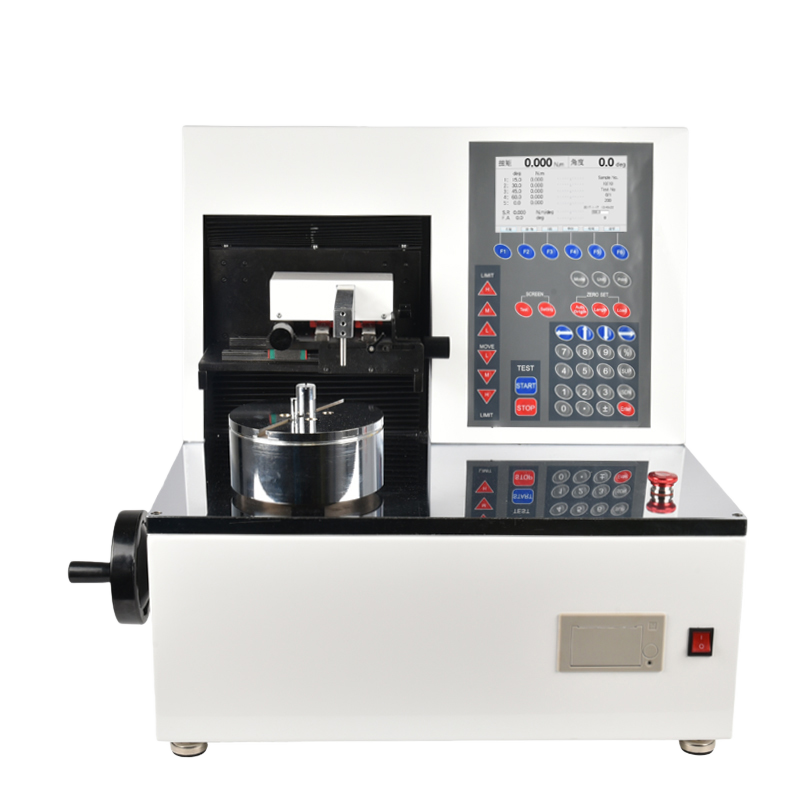

ANSM Automatic Torsion Spring Testing Machine

ANSM Automatic Torsion Spring Testing Machine

ANSM Automatic Torsion Spring Testing Machine is mainly used for torsion-angle and angle-torque testing of various springs. It is a high-performance testing machine that can exert high-efficiency and labor-saving spring detection functions.

It is widely used in spring manufacturing companies and various scientific research place.

Automatic testing of constant load (angle) springs in sections 1, 2, 3, 4, and 5, and determination of free angles can be easily completed.

Automatic origin calibration function completes the deformation calculation and compensation of the load sensor and machine material rigidity structure, ensuring high-precision measurement.

7-inch TFT touchscreen.

For convenient tolerance calculation and input, the system will automatically calculate the upper and lower limits after the tolerance percentage is entered.

More than a dozen test types are available, meeting not only production measurement needs but also the testing requirements of spring engineering design.

Test load units include N.m, Kg.cm, and Lb.in.

The turntable automatically calibrates the position of the load test plug gauge and rotating plug gauge to obtain a precise zero point position.

DB9 and USB communication interfaces.

Rotation displacement control button with 10-degree, 1-degree, and 0.1-degree slow rotation levels allows for precise angle control.
