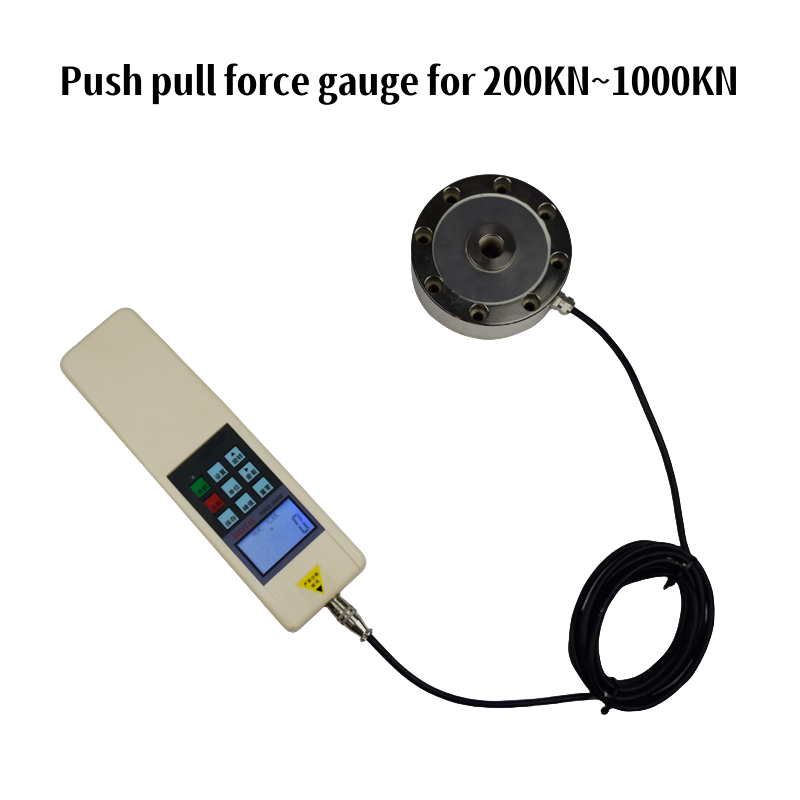

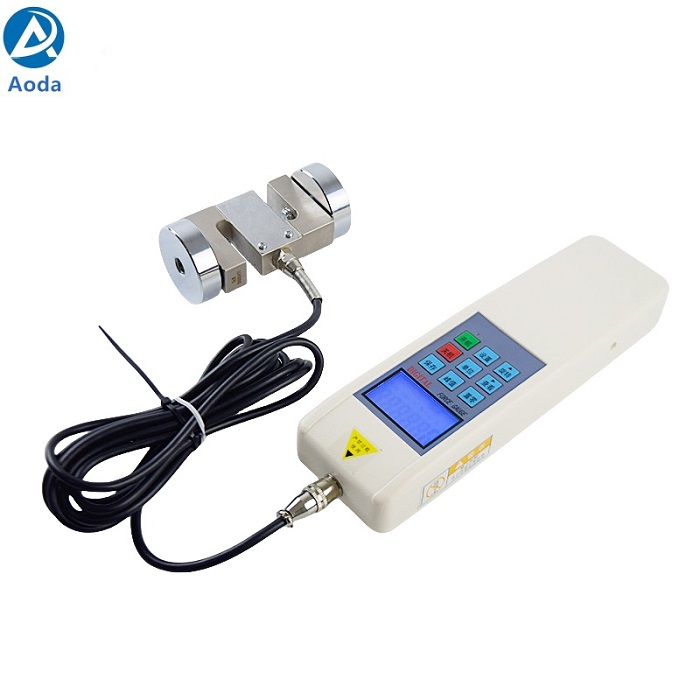

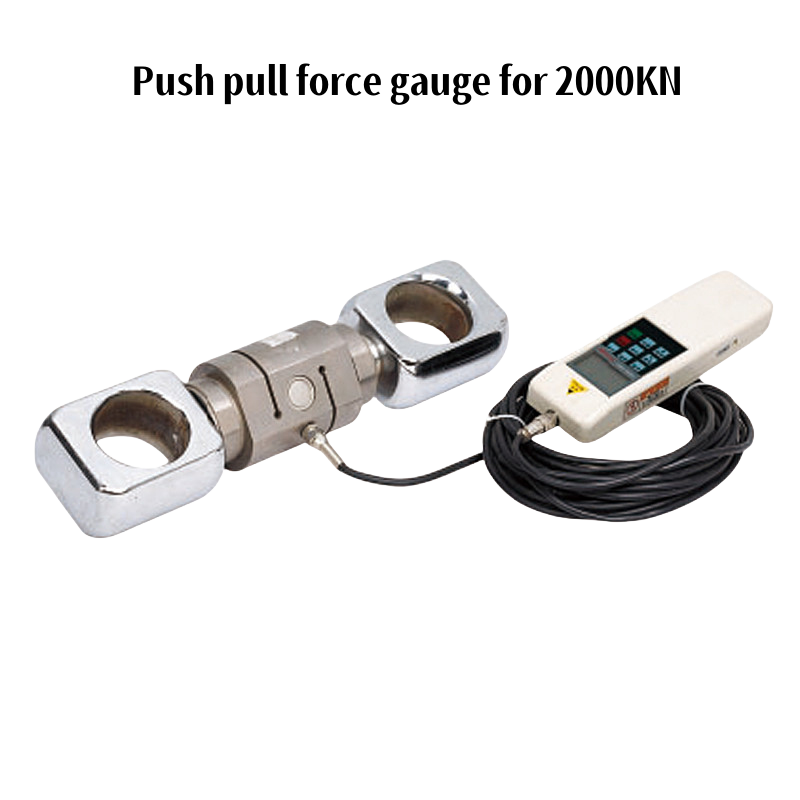

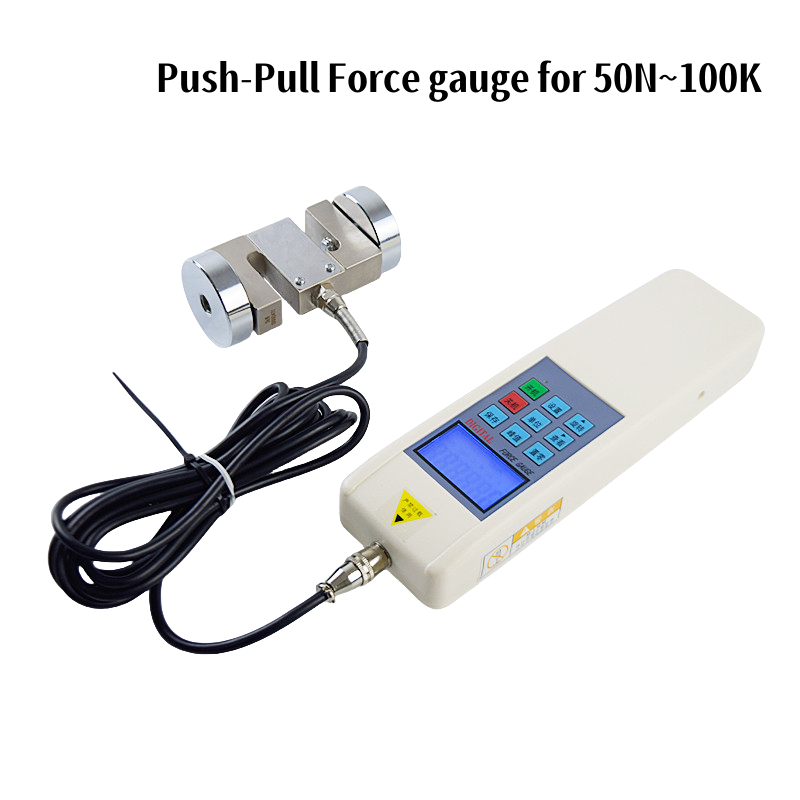

HF-5000 Digital push-pull force gauge with external sensor

HF-5000 Digital push-pull force gauge with external sensor

Digital display push-pull gauge is a small, simple, multi-functional and high-precision thrust and pull test instrument, which is widely used in electronic appliances, construction hardware, light industrial textiles, auto parts, lighters and other ignition devices, fire equipment, pen making Push-pull load, insertion force test, destructive test, etc. in lock making, fishing gear, chemical industry, power machinery, scientific research institutions and other industries. The digital display has high resolution, high sampling speed, and easy to use. It is a new generation of high-efficiency and high-precision push-pull force testing instrument.

1. High precision and high resolution.

2. Five test modes and three display modes are available (MAX degree improves test efficiency).

3. N (Newton), kg (Kilogram), lb (Pound) three measurement units are available for selection and conversion.

4. Gravity acceleration setting function: The user can input the accurate value of the gravity acceleration of the use place by himself. Make testing and unit conversion more accurate.

5. Peak hold function. Keep the peak display until manually cleared.

6. Automatic peak function, the time can be set freely, from 1 to 9999 seconds.

7. The upper and lower limits can be set for statistical analysis. By setting the upper and lower limits to exceed the limited range, the buzzer can alarm.

8. Data storage function, can store 447 test values.

9. Data output function, the data can be input into the computer through the data line for various analysis. (It can also be applied to multiple instruments to perform various analyses with a computer at the same time.)

10. Green and environmental protection, 10 minutes of no operation automatic shutdown, 10 minutes is the default, you can set the automatic shutdown to the required automatic shutdown time, when the automatic shutdown is set to 0, it will not automatically shut down.

11. High-quality charging power supply. The charging voltage is available from 100V to 240V, which can be adapted to most areas in China and abroad. There are also short-circuit, leakage, and overload protection functions.

12. The unique switch contact on-off force test function makes the switch on-off force test more accurate.

13. 6-bit large screen display.

14. Low battery detection and shutdown. When the battery is low, it will automatically shut down to prevent inaccurate measurement caused by insufficient battery.
