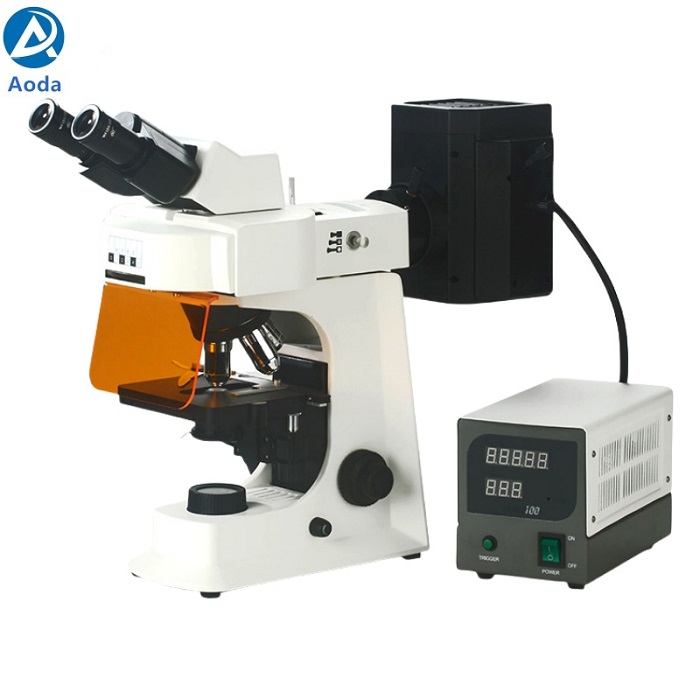

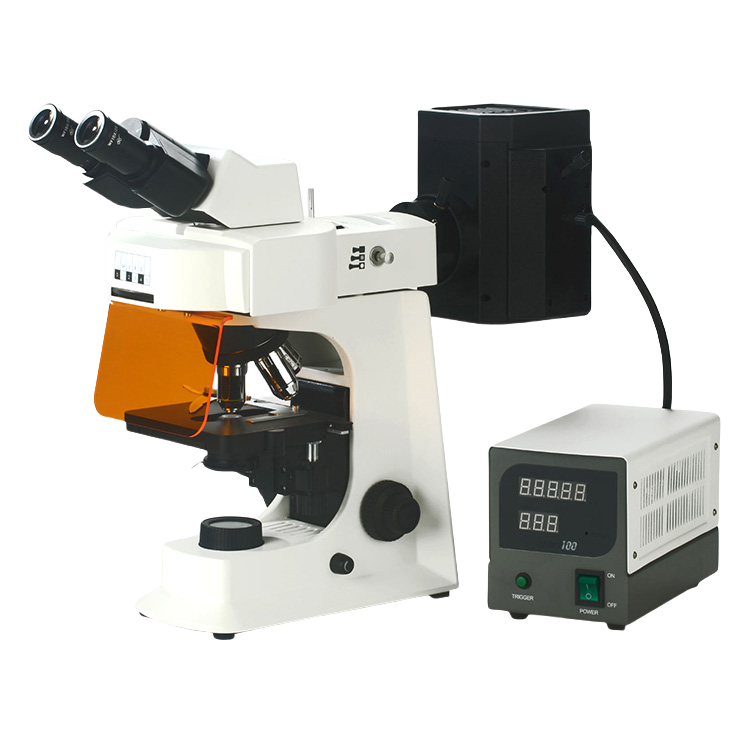

Smart-FL Fluorescence Microscope
SMART-FL fluorescence microscope is upgraded from the model of the SMART infinity optical system. This fluorescence microscope can be configured with two sets of fluorescence or four sets of fluorescence. In addition to the standard B/G/Uv/V color filters, other color filters can also be selected. This fluorescence microscope is mainly used to observe some substances with fluorescent properties, etc., and is used in biological laboratories, school teaching, hospital research, etc.
Excellent OTICS infinity optical system with outstanding resolution and definition.
Original integrated stand for excellent stability.
A unique aspheric illumination system provides bright and comfortable lighting.
Various colorful matching looks can provide a lively environment and a happy mood.
With Various accessories for upgrading.
Back handle and observing hole convenient for carry and operation.
With an alternative color for the main body.

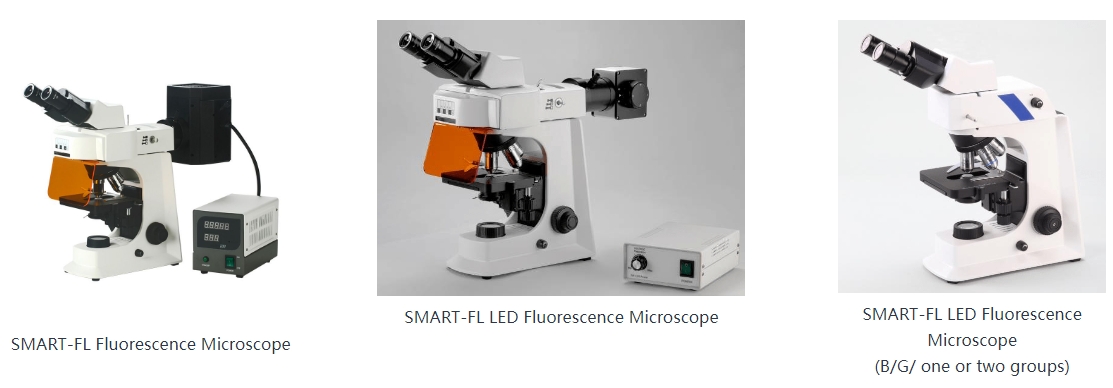

Different Types of SMART-FL Fluorescence Microscope
| Epi Fluorescence Device
| SMART-FL Fluorescence Microscope | |||
Items | Specification | SMART-3FL | SMART-4FL |
Eyepiece | WF 10X- 20mm | ●● | ●● |
Infinity E-Plan Objectives | 4X | ● | |
10X | ● | ||
40X (S) | ● | ||
100X (Oil) (S) | ● | ||
Infinity Plan Objectives | 4X | ● | |
10X | ● | ||
40X (S) | ● | ||
100X (Oil) (S) | ● | ||
Plan 20X | ○ | ○ | |
Plan 60X (S) | ○ | ○ | |
Butterfly Seidentopf Binocular Head | Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm | ● | ● |
Butterfly Seidentopf Trinocular Head | Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm, Light Distribution 20:80 | ○ | ○ |
3MP/5MP Digital Head 1/2’’CMOS color sequential scanning. USB2.0 Light Distribution: 20:80 | ○ | ○ | |
Nosepiece | Quadplex | ● | ● |
Quintuple | ○ | ○ | |
Mechanical Stage | Stage Size: 145 mm×140mm Travel: 76mmX52mm, Scale: 0.1mm Coaxial Coarse and Fine Focusing Knobs Travel Range: 26mm, Scale: 2um Two Slide Holder | ● | ● |
Rackless(Integrated) stage, size: 140×135mm,Travel range: 75×35mm, | ○ | ○ | |
Condenser | Abbe N.A. 1.25(Iris Diaphragm) | ● | ● |
Illumination | 3W-LED Illumination Systems（DC input） | ● | ● |
12V/20W Halogen Lamp | ○ | ○ | |
12V/30W Halogen Lamp | ○ | ○ | |
Field Diaphragm | ○ | ○ | |
Dark Field Condenser | Dry, apply to 4X - 40X objective | ○ | ○ |
Polarizing Attachment | Analyzer/Polarizer | ○ | ○ |
Independent phase contrast unit | 10X /20X /40X /100X | ○ | ○ |

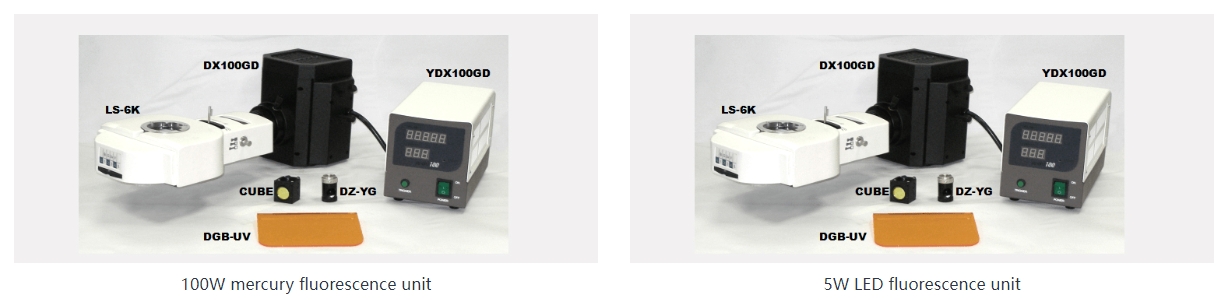

Fluorescence Attachment | Epi fluorescence unit ( six-hole disc media which can be fixed with Uv /V/B/G and another filters) ,100W mercury lamp. | ○ | ○ |
Chinese Blue fluorescence filter | ● | ● | |
Chinese Green fluorescence filter | ● | ● | |
Chinese Violet fluorescence filter | ○ | ○ | |
Chinese Ultraviolet fluorescence filter | ○ | ○ | |
Epi fluorescence unit ( six-hole disc media which can be fixed Uv /V/B/G), 5W-LED fluorescence lamp. | ● | ● | |
Filter | Blue /Green /Yellow | ○ | ○ |
C-Mount | 1X/ 0.5X/0.75X （Focus adjustable） | ○ | ○ |
Mirror | ○ | ○ | |
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
