BDS500-FL Inverted Fluorescence Microscope
BDS500-FL Inverted Fluorescence Microscope can be used not only for fluorescence observation but also for bright field observation and phase contrast observation....
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
BDS500-FL Inverted Fluorescence Microscope

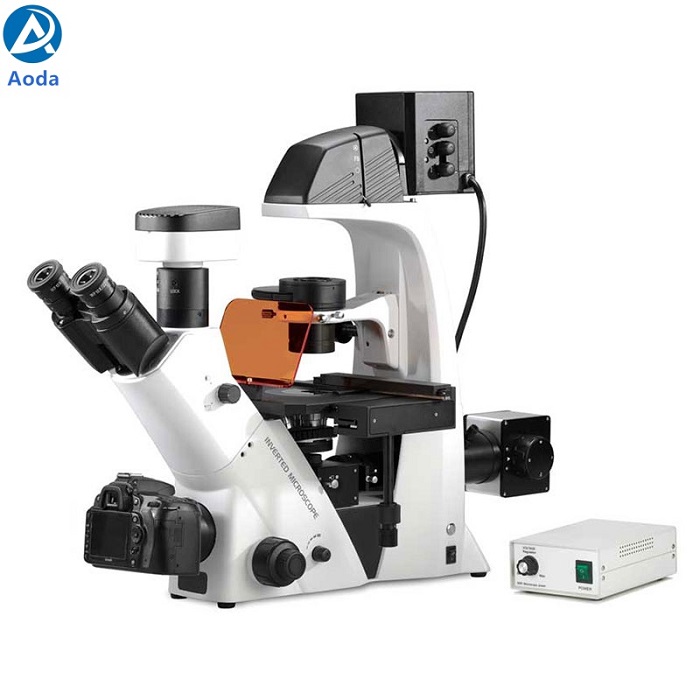

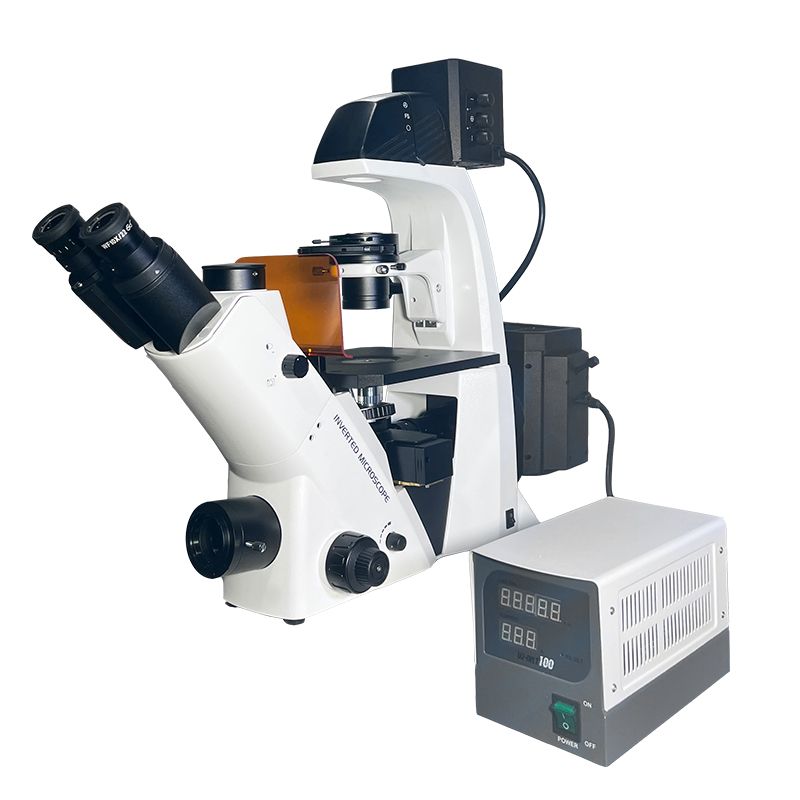

BDS500-FL inverted fluorescence microscope is a professional experimental instrument. In addition to the eyepiece channel, this model can also be connected to a digital camera and a SLR camera. The BDS500-FL microscope is one of our top-of-the-line biological laboratory equipment. It is mainly used to study organisms with fluorescent properties, ordinary organisms, etc. It can be used not only for fluorescence observation but also for bright field observation and phase contrast observation.
This is also a trinocular microscope. After connecting to the digital camera, you can use software to measure and shoot observation images. The EPI fluorescence device can add up to four sets of fluorescence filters: Blue/Green/Ultraviolet/Violet.
Trinocular biological microscope, connected to digital camera and SLR camera.
Magnification 40X~400X, multiple optional objective lenses.
Three observation modes: fluorescence, phase contrast, bright field.

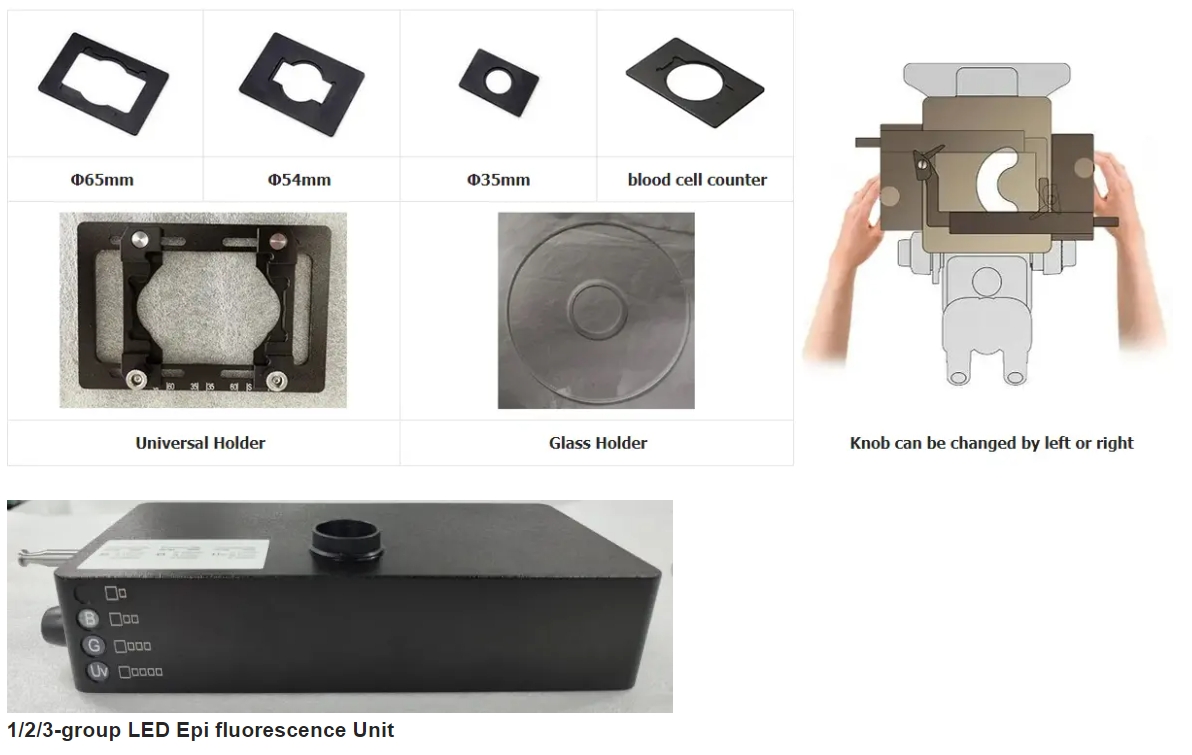

| Culture Dish Holder of BDS500-FL Inverted Fluorescence Microscope
| Fluorescence Illumination

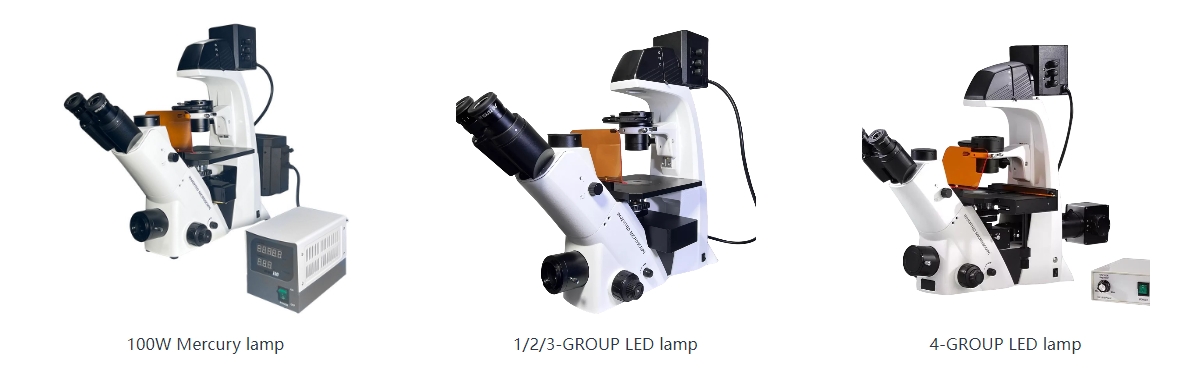

Regarding fluorescence light sources for fluorescence microscopes, there are two commonly available options: 100W mercury lamps and 5W LED lamps.

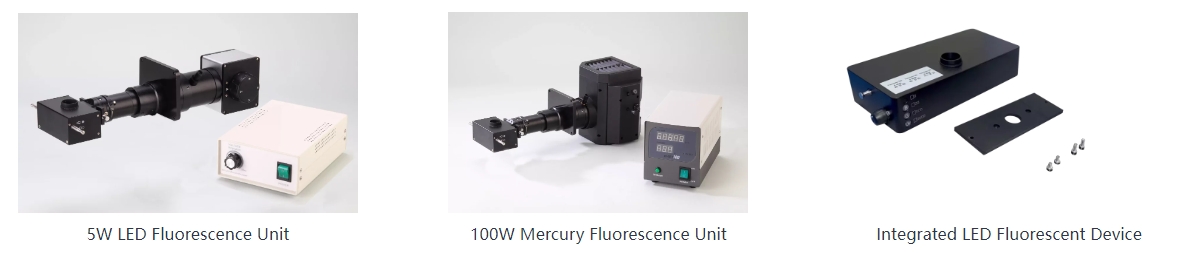

Our LED fluorescent device is now updated. For groups 1 to 3 of fluorescent filters, we use an integrated fluorescent device, which installs both the light box and the fluorescence filter in the same device. If there are 4 group of fluorescence filters, the previous device will still be used.

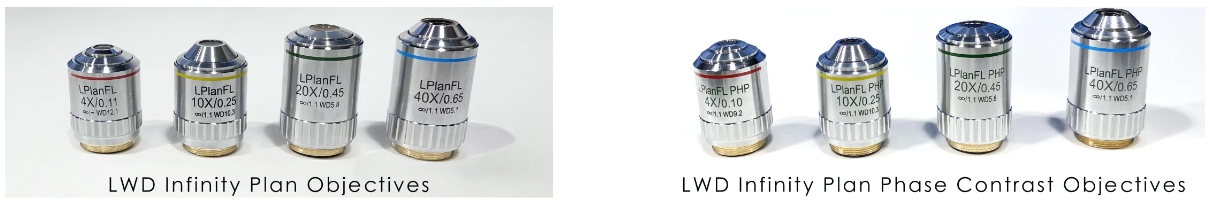

| Objective Parameter List (Cover-glass thickness1.1mm)
| Objectives | N.A. | Working distance(mm) | |
| LWD Infinity Plan Objectives | Plan FL 2X | 0.06 | 7.2 |
| L Plan FL4X | 0.11 | 12.1 | |
| L Plan FL10X | 0.25 | 10.3 | |
| L Plan FL 20X | 0.45 | 5.8 | |
| L Plan FL40X | 0.65 | 5.1 | |
| L Plan FL 2X | 0.06 | 7.2 | |
| LWD Infinity Plan Phase Contrast Objectives | L Plan FL PHP 4X (Both for Bright Field & Phase Contrast) | 0.1 | 9.2 |
| L Plan FL PHP 10X (Both for Bright Field & Phase Contrast) | 0.25 | 10.3 | |
| L Plan FL PHP 20X (Both for Bright Field & Phase Contrast) | 0.45 | 5.8 | |
| L Plan FL PHP 40X (Both for Bright Field &Phase Contrast) | 0.65 | 5.1 | |
| LWD Infinity Plan Fluor Objectives | L Plan Fluor 10x | 0.3 | 14 |
| L Plan Fluor 20x | 0.45 | 6.6 | |
| L Plan Fluor 40x | 0.65 | 3.9 |
| Epi Fluorescence Device
| Item | Specification | Outfits | |
| Eyepiece | WF10X／22mm (adjustable) | ●● | |
| Centering telescope | ● | ||
| LWD Infinity Plan Objectives | Plan FL 2X／0.06 | W.D.=7.2mm | ○ |
| L Plan FL 4X／0.11 | W.D.=12.1mm | ● | |
| L Plan FL 10X／0.25 | W.D.=10.3mm | ○ | |
| L Plan FL 20X／0.45 | W.D.=5.8mm | ○ | |
| L Plan FL 40X／0.65 | W.D.=5.1mm | ○ | |
| LWD Infinity Plan Phase Contrast Objectives | L Plan FL PHP 4X／0.10(Both for Bright Field & Phase Contrast) | W.D.=9.2mm | ○ |
| L Plan FL PHP 10X／0.25(Both for Bright Field & Phase Contrast) | W.D.=10.3mm | ● | |
| L Plan FL PHP 20X／0.45(Both for Bright Field & Phase Contrast) | W.D.=5.8mm | ● | |
| L Plan FL PHP 40X／0.65(Both for Bright Field & Phase Contrast) | W.D.=5.1mm | ● | |
| LWD Infinity Plan Fluor Objectives | L Plan Fluor 10x / 0.30 | W.D.=14.0mm | |
| L Plan Fluor 20x / 0.45 | W.D.=6.6mm | ||
| L Plan Fluor 40x / 0.65 | W.D.=3.9mm | ||
| Annular Spot | 10×/20×/ 40× | ● | |
| 4× | ● | ||
| Seidentopf Trinocular Head | Inclined 45°, interpupilary distance: 48-76mm Light distribution (both): 100: 0 （100% for eyepiece） 80:20 (80% for trinocular head, and 20% for eyepiece) | ● | |
| Seidentopf Trinocular Head | Inclined 45°, interpupilary distance: 48-76mm Light distribution (both): 100: 0 and 0:100 (100% for eyepiece or 100% for trinocular head) | ○ | |
| Adaptor for Digital Photography | 100% light for Photography Port (Adaptor for CANON or NIKON SLR Digital Photography Camera) | ● | |
| Nosepiece | Quintuple | ● | |
| Mechanical Stage | Stage size: X×Y 210×241mm， Round slide size：φ110mm, Attached mechanical stage(available for 96 holes plate, moving range X×Y：128×80mm.) | ● | |
| Culture Dish Holder | 65mm+35mm | ○ | |
| 54mm | ● | ||
| blood cell counter | ○ | ||
| Glass Holder | ○ | ||
| Universal Holder | ○ | ||
| Condenser | 4-hole rotating disc phase contrast condenser N.A.0.4，W.D.45mm，It can be up-down adjusting | ● | |
| Koehler Illumination | 12V/50W Halogen, input voltage：100V～240V | ● | |
| 5WLED，input voltage：100V～240V | ○ | ||
| Filter | Blue | ● | |
| Green | ● | ||
| Amber / Grey | ○ | ||
| C-mount | 1 X /0.35X /0.5X /0.75X C-Mount (focus adjustable) | ○ | |
| Epi fluorescence Illumination | Epi fluorescence media unit, field diaphragm, center adjustable. | ● | |
| 100W mercury lamp, 5WLED (input voltage:100V～240V) | ● | ||
| B, G, V, UV fluorescence filters can be chosen | ● | ||
Note: “●”In Table Is Standard outfits, “○” Is Optional Accessories.
Packing Size: 660mm×590mm×325mm Gross Weight: 18 kgs Net Weight: 13.5 kgs
