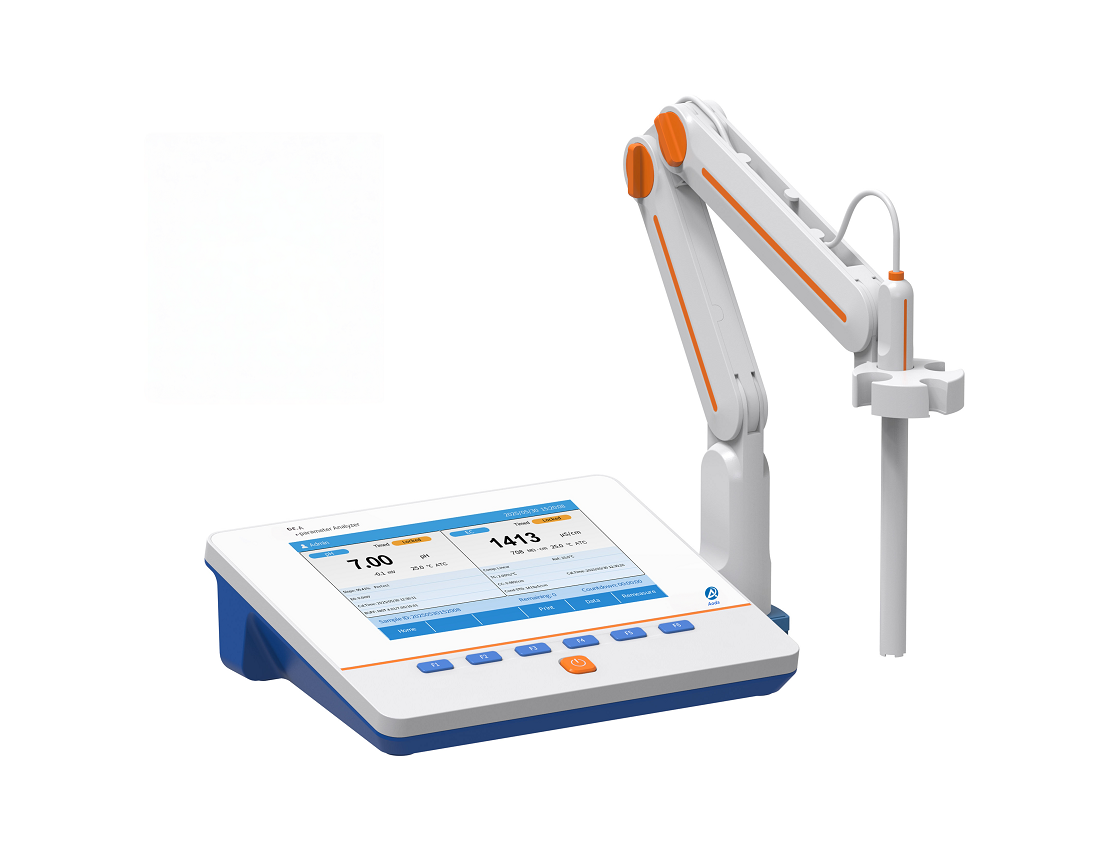

AODA M300F-A Multiparameter water quality meter
M300F-A Multiparameter water quality meter tests pH mV pX EC TDS Salinity Resistivity ION Temperature...
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
AODA M300F-A Multiparameter water quality meter
M300F-A Multiparameter water quality meter tests pH mV pX EC TDS Salinity Resistivity ION Temperature in liquid.
Standard including :
2 in 1 combined pH electrode;
Conductivity electrode;
4.01, 7.00, 10.01 pH standard solution
1413μS/cm EC standard solution
High resolution LCD display, 7.0 inches.
Multi-reading feature allows auto-read, timed-read and continuous-read.
Automatic/Manual temperature compensation ensures accurate results.
Auto-hold feature senses and locks the measurement endpoint.
Data Storage 500 sets of each parameter(GLP-compliant).
RS-232 communication for print.
USB communication for PC software
Reset feature automatically resumes all settings back to factory default options.
IP54 waterproof.
pH
1-5 points calibration with Standard Recognition.
Selectable pH buffer groups, including NIST, DIN, GB, USA and GOST.
Automatic electrode diagnosis with pH slope and offset display.
Ion
1-5 points calibration with polyline fitting or linear fitting.
Selectable measurement unit, including μg/L, mg/L, g/L, mmol/L, pX, ppm and ppb.²
Direct Reading mode.
Over 10 methods are built-in, including F-, Cl-, I-, NO3-, BF4-, NH4+, K+, Na+, Ca2+, Cu2+, Pb2+, Ag+ and NH3-N. User-defined method is supported.
Conductivity
1-3 points calibration with Standard Recognition.
Settable parameters, including cell constant, temperature compensation coefficient and TDS factor.
Temperature compensation type (none, linear, pure water).
Model | M300F-A | |
Parameters | pH/EC/ISE/Temp. (mV/pX/Resistivity/TDS/Sal.) | |
pH | Range | -2.00~20.00 pH |
Resolution | 0.1, 0.01 pH | |
Accuracy | ±0.01 pH | |
Calibration Points | Up to 5 | |
Standard Customization | Yes | |
Standard Recognition | NIST, DIN, GB, USA and GOST buffers | |
Slope Limit | Yes | |
mV | Range | -2000.0~ 2000.0 mV |
Resolution | 0.1 mV | |
Accuracy | ±0.3 mV or ±0.1% | |
pX | Range | -2.00~20.00 pX |
Resolution | 0.1, 0.01 pX | |
Accuracy | ±0.01 pX | |
Calibration Points | Up to 5 | |
ISE | Range | 1.000e-9 to 9.999e+9 |
Unit | mol/L, mmol/L, g/L, mg/L, μg/L, ppm, ppb | |
Resolution | Up to 4 significant digits | |
Accuracy | ±0.5% | |
Calibration Points | Up to 5 | |
Conductivity | Range | 0.000 μS/cm~1000 mS/cm |
Resolution | 0.001 μS/cm minimum, various with range selection | |
Accuracy | ±1.0% FS | |
Reference Temperature | 20, 25ºC | |
Calibration Points | Up to 3 | |
Standard Recognition | 84μS/cm, 1413μS/cm, 12.88mS/cm | |
Resistivity | Range | 5.00 Ω·cm~20.00 MΩ·cm |
Resolution | 0.01 Ω·cm minimum | |
Accuracy | ±1.0% FS | |
TDS | Range | 0.00 ppm~300 ppt |
Resolution | 0.01ppm minimum, various with range selection | |
Accuracy | ±1.0% FS | |
Salinity | Range | 0.0～80.0 ppt, 0.00~8.00 %NaCl |
Resolution | 0.1ppt, 0.1% | |
Accuracy | ±2ppt | |
Temperature | Range | (-5~110)ºC, (23~230)ºF |
Unit | ºC,ºF | |
Resolution | 0.1 | |
Accuracy | ±0.2ºC | |
Measurement | Reading Mode | Auto Read (Fast, Medium, Slow), Timed, Continuous |
Reading Prompts | Reading, Stable, Locked | |
Temp. Compensation | ATC, MTC | |
Data management | Data Storage | 500 results each |
GLP Features | Yes | |
Inputs | pH Electrode | BNC(Q9) |
DO with Temp. Probe | 4-pin aviation connector | |
Conductivity with Temp. Probe | 5-pin aviation connector | |
Outputs | USB | PC |
RS 232 | printer | |
Display options | Backlight | Yes |
Auto Shutdown | 1~60 min, off | |
IP Rating | IP54 | |
Date and Time | Yes | |
General | Power | EU Power Adapter (Input: AC 230V/50Hz; Output: DC 20V/1000mA). Configurable power adapter option available. |
Dimensions | 242×195×68 mm | |
Net Weight | 900g (1.98 lb) | |
Dimensions (Carton) | 370×305×330 mm | |
Shipping Weight | 3.5 kg | |
