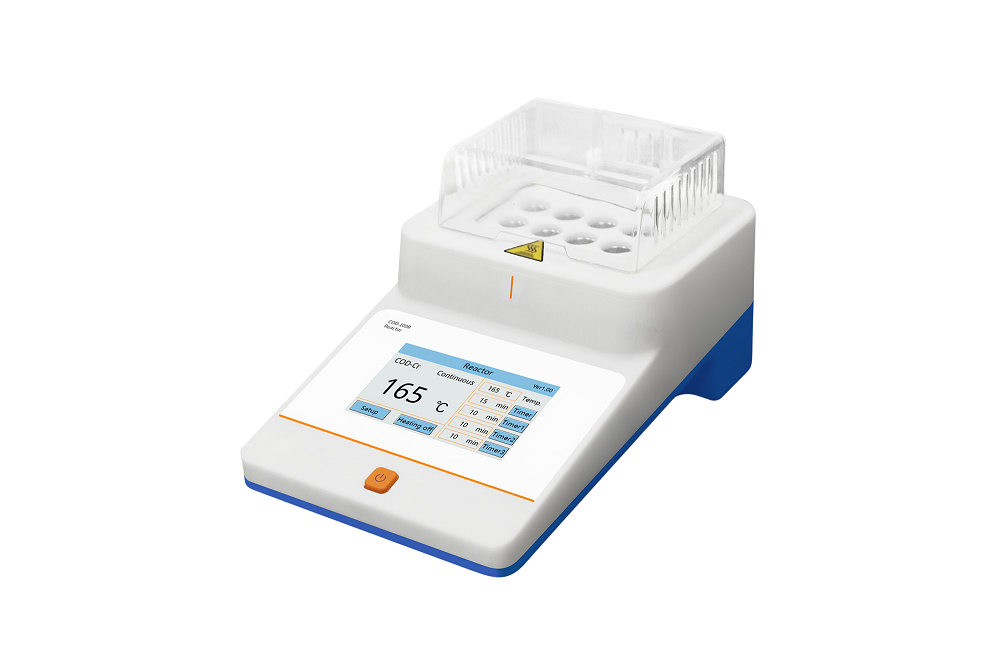

AODA COD-100R Reactor

AODA COD-100R Reactor

COD-100R Reactor supports simultaneous digestion of up to 8 samples....

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service

COD-100R Reactor

COD-100R Reactor supports simultaneous digestion of up to 8 samples,each accommodating vials with a diameter of 16 mm.


Features 蓝.jpg

Utilizes a sealed micro-recycling digestion method, eliminating the need for external condensation or cooling water.

Features a high-contrast 4.3-inch color LCD touchscreen for intuitive operation.

Supports simultaneous digestion of up to 8 samples.

The digestion block includes 8 holes, each accommodating vials with a diameter of 16 mm.

Offers 8 preset digestion methods and 1 user-defined program for flexible operation.

Customizable method parameters include digestion temperature (45–185°C), digestion time (0–480 minutes), and countdown reminder.

Provides two heating modes: "continuous heating" and "intermittent heating."

Equipped with a high-temperature indicator light that activates when the reactor exceeds 65°C.

Designed for reliable and safe chemical digestion, complete with a protective safety shield.

Includes an audible buzzer that signals when the target temperature is reached, when digestion is complete, and for countdown reminders.

Allows users to easily restore the default method settings.



Model

COD-100R Reactor

Measuring Unit





Number of holes

8×16 mm holes

Digestion block

1

Sample cell

Vials, φ16mm×100mm

Temperature









Range

(45~185)ºC

Resolution

± 0.1ºC

Accuracy

±2ºC

Uniformity

≤2ºC

Heating Rate

From 20 to 165 °C in 10 minutes

Time



Range

(0480)min

Accuracy

±2%

Method management



















Pre-defined Methods



CODCr method

(150 °C, 120 minutes)

CODMn method

(150 °C, 120 minutes)

TP (Total phosphorus) method

TN(Total nitrogen) method

Iron method

Total chromium method

Urea method

Methanal method

User-defined Methods

1

General







Power Supply

AC 100-240V50/60Hz

Power

250W

Dimensions

175×280×145mm

Net Weight

About 2 kg
