BK5000-FL Fluorescence Microscope
Fluorescence microscopes are mainly used to observe the distribution and transportation of substances with fluorescent properties or stained by fluorescent reagents....
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service

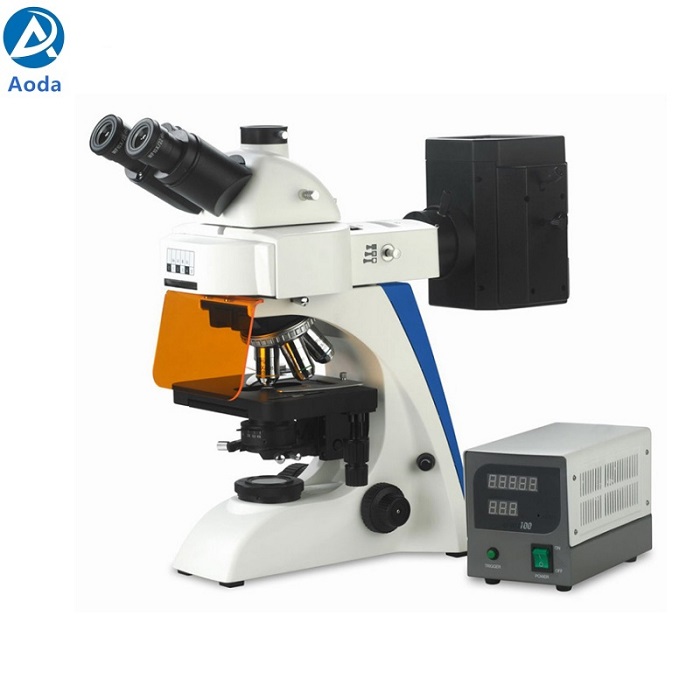

BK5000-FL Fluorescence Microscope
BK5000-FL fluorescence microscope is a professional laboratory instrument. It is based on the BK5000 biological microscope and adds an EPI epifluorescence device. Fluorescence microscopes are mainly used to observe
the distribution and transportation of substances with fluorescent properties or stained by fluorescent reagents. The magnification of the microscope is 40X~1000X, with 4X/10X/20X/40X/100X objective lenses as standard, and other magnifications are available. Up to five filter sets can be added to the fluorescence device. We generally provide two-group and four-group fluorescence devices.

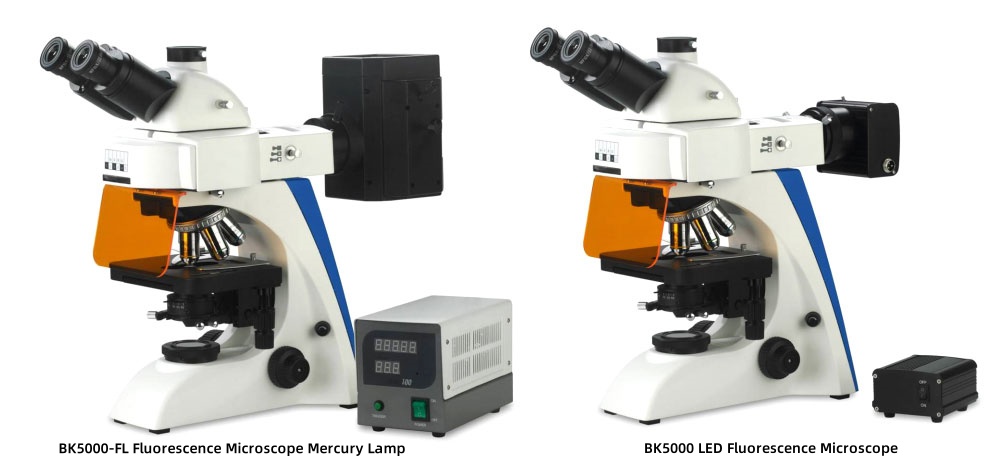

| Different Types of BK5000-FL Fluorescence Microscope

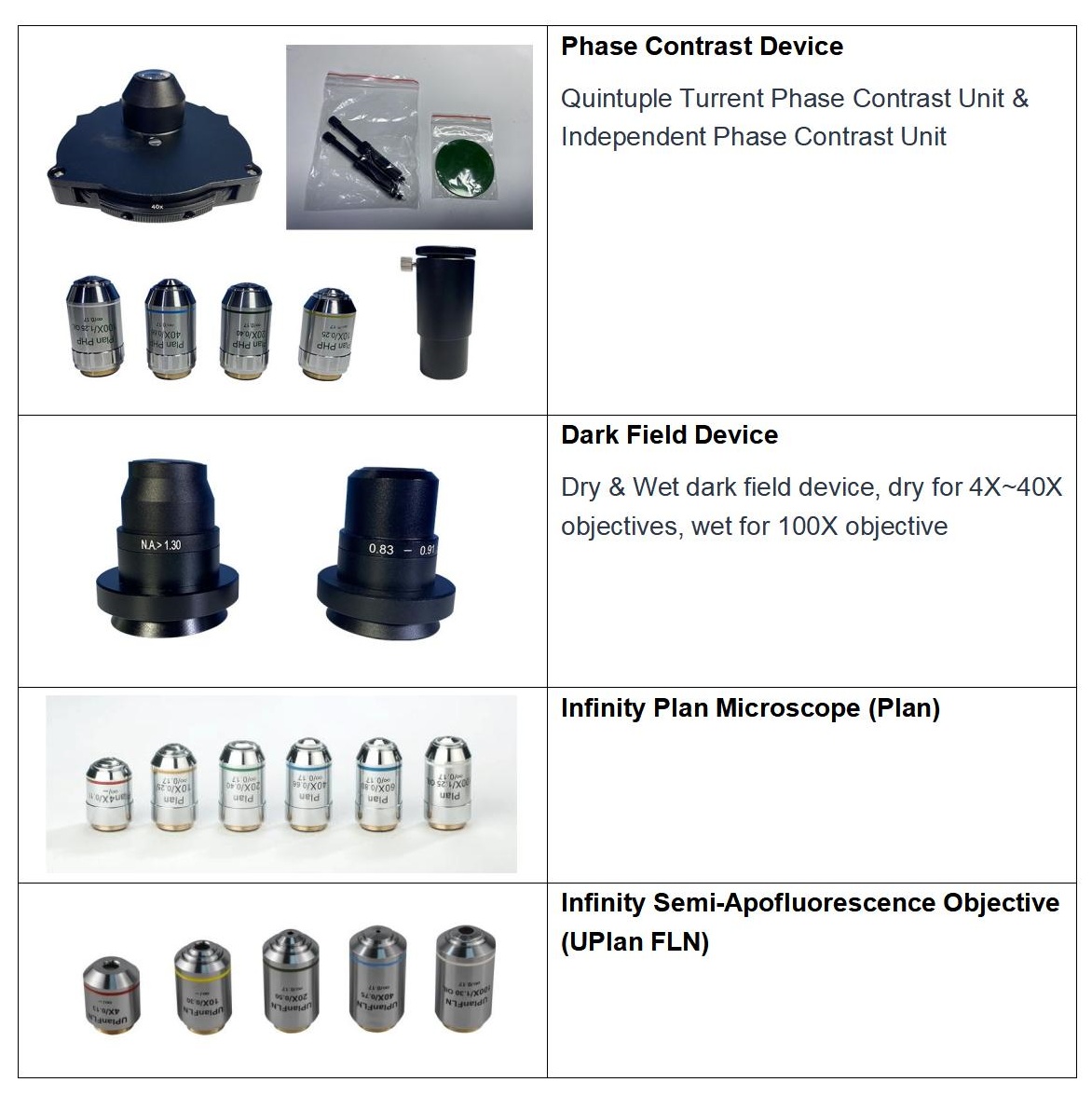

| Components of BK5000-FL Fluorescence Microscope
| BK5000-FL Fluorescence Microscope specification
| Items | Specification | BK5000-FL | ||
| Eyepiece | WF10×／20mm (23.2mm) | ●● | ||
| Infinity Plan Objectives | PLAN 4×／0.10 | W.D.=12.10mm | ● | |
| PLAN 10×／0.25 | W.D.=4.64mm | ● | ||
| PLAN 20×／0.40(S) | W.D.=2.41mm | ● | ||
| PLAN 40×／0.66(S) | W.D.=0.65mm | ● | ||
| PLAN 100×／1.25(S, Oil) | W.D.=0.12mm | ● | ||
| PLAN 2×／0.06 | W.D.=7.2mm | ○ | ||
| PLAN 60×／0.80(S) | W.D.=0.33mm | ○ | ||
| PLAN 100×／1.15(S, W) | W.D.=0.19mm | ○ | ||
| Infinity Plan Semi Apochromatic Objective | UPlanFLN 10X/0.30 | W.D.=7.68mm | ○ | |
| UPlanFLN 20X/0.50 | W.D.=1.96mm | ○ | ||
| UPlanFLN 40X/0.75 | W.D.=0.78mm | ○ | ||
| UPlanFLN 100X /1.30 (Oil) | W.D.=0.15mm | ○ | ||
| Seidentopf Binocular Head | Inclined 30°,Rotatable 360°, Interpupilary Distance:48mm-75mm | ● | ||
| Seidentopf Trinocular Head | Inclined 30°,Rotatable 360°, Interpupilary Distance:48mm-75mm, Light Distribution: 100: 0 | ○ | ||
| Nosepiece | Quintuple | ● | ||
| Mechanical Stage | Stage Size: 175mm×145mm,Travel: 78mm×55mm Coaxial Coarse and Fine Focusing Knobs Two Slide Holder | ● | ||
| Integrated stage Stage size: 182 mm×140mm,Travel range: 77mm×52mm Two-slide holder | ○ | |||
| Condenser | Abbe N.A. 1.25 with iris diaphragm. | ● | ||
| Swing Out Condenser, N.A. 0.9/0.13, with iris diaphragm. | ○ | |||
| Koehler Illumination Wide voltage input: 100V～ 240V Field diaphragm , center adjustable | 12V/20W Halogen Lamp | ● | ||
| 12V/30W Halogen Lamp | ○ | |||
| 3W-LED Illumination( DC input) | ○ | |||
| Filter(Φ45mm) | Blue | ● | ||
| Green /Amber /Grey/Frosted glass | ○ | |||
| C-mount | 1×/0.5×/0.35×/0.75×(focus adjustable) | ○ | ||
| Fluorescence Attachment | Epi fluorescence unit ( six-hole disc media which can be fixed with Uv /V/B/G and another filters), 100W mercury lamp | ● | ||
| Chinese Ultraviolet Fluorescence filter EX361-389, DM415, EM435LP | ● | |||
| Chinese Violet Fluorescence filter EX390-420, DM430, EM470LP | ● | |||
| Chinese Blue Fluorescence filter EX420-480, DM505, EM520LP | ● | |||
| Chinese Green Fluorescence filter EX525-555, DM565, EM590LP | ● | |||
| Epi fluorescence unit ( six-hole disc media which can be fixed Uv /V/B/G), 5W-LED fluorescence lamp. | ○ | |||
Note: “●”In Table Is Standard outfits, “○” Is Optional Accessories.
Packing Size: 520mm×470mm×490mm, Gross Weight: 16 kgs, Net Weight: 15kgs

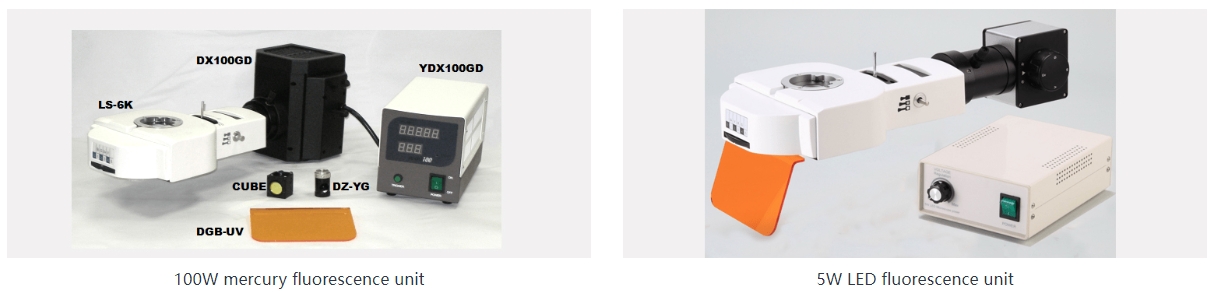

| Epi Fluorescence Device
