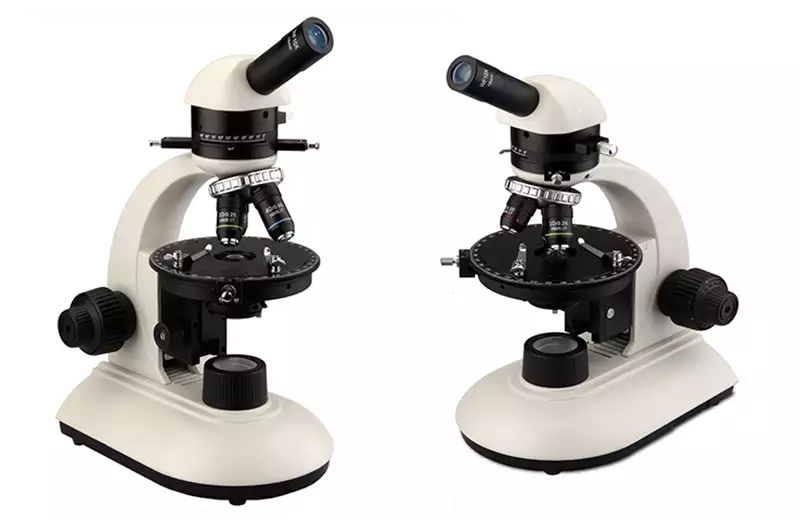

B-POL Monocular Polarizing Microscope
B-POL is a professional polarizing microscope. It is suitable for students to use, or those who are beginners in microscopy. B-POL polarizing microscope is equipped with a 0-90° analyzer, it is the basic model in the polarizing series microscope, with low price, controllable cost, and good observation effect.

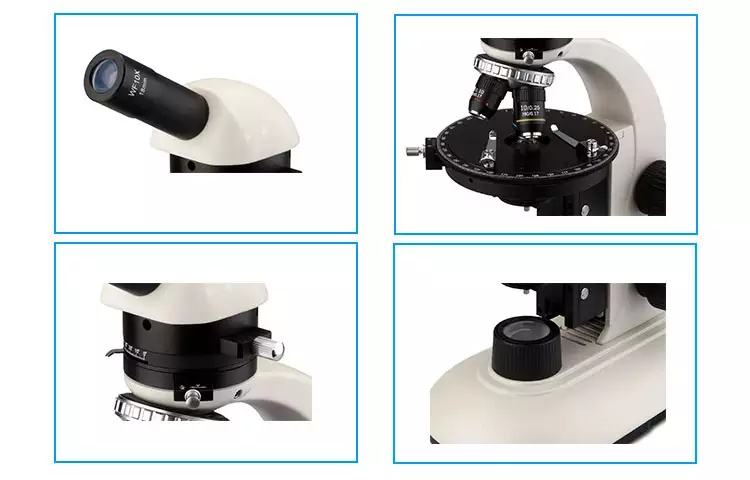

Monocular head, inclined 30 degrees. The angle of the head can be adjusted, the eyepiece is 10X/18mm.
Polarizing microscopes are equipped with analyzers and polarizers, both of which can be moved and rotated.
The objective lens adopts a stress-free finite apochromatic objective lens, including 4X~60X magnification.
Currently, this model only has 3W LED low-voltage DC input models. Safe use of electricity, and easy to connect to the power supply.
| Items | Specification | B-POL |
| Eyepiece | WF 10×-18mm (Cross, Reticule 0.1mm) | ● |
| WF 16×-13mm | ○ | |
| Non-stressAchromatic Objective | 4× | ● |
| 10× | ● | |
| 40× (S) | ● | |
| 20× | ○ | |
| 60× (S) | ○ | |
| Mono Head | Inclined 30°, Rotatable 360° | ● |
| Nosepiece | Quadplex | ● |
| Analyzer Unit | 0-90°，It can be moved out of the optical path for single polarizing observe. | ● |
| Bertrand Lens | It can be moved out of the optical path | ● |
| λ Slip | First Class Red | ● |
| 1/4λ Slip | ● | |
| Quartz Wedge | (Ⅰ-Ⅳ Class) | ○ |
| Revolving Round Stage | Rotatable 360°, Division 1°, Vernier division 6’, can be locked. Diameter Φ142mm | ● |
| Polarizing Attached Mechanical Stage | ○ | |
| Condenser | Abbe N.A. 1.25 | ● |
| Polarizing Unit | It can be moved out of the optical path. | ● |
| Illumination | 3WLED Lamp DC input, wide voltage 100V-240V 12V/20W halogen lamp, wide voltage 100V-240V | ● ○ |
Note: “●”In Table Is Standard outfits, “○” Is Optional Accessories.
