Reasearch-grade upright Fluorescence microscope
MF43-N research-grade upright fluorescence microscope is equipped with a 6-hole epi-fluorescence module and an ultra-long-life LED fluorescence light source. It can be expanded and upgraded to achieve various observation methods. The high numerical apertu...
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Reasearch-grade upright Fluorescence microscope

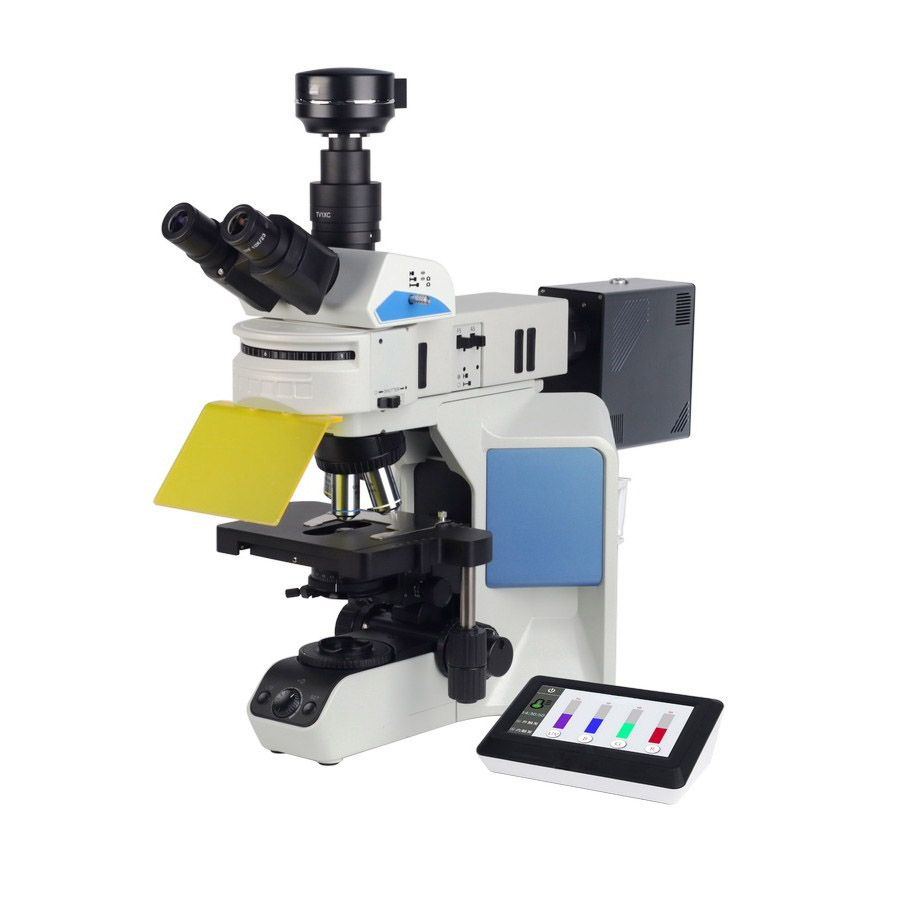

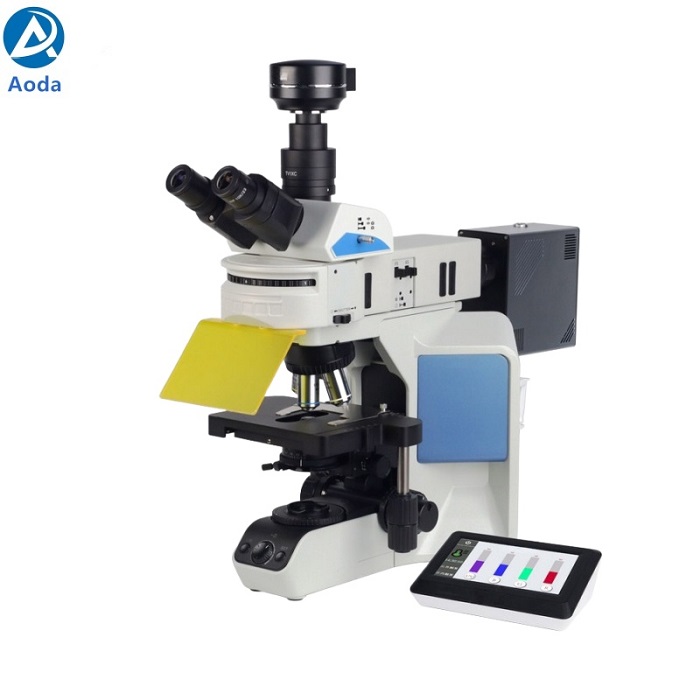

MF43-N research-grade upright fluorescence microscope,with equivalent performance to Olympus BX43, is equipped with excellent quality infinity optical system and maximum fit to six fluorescence filter cubes, It can be expanded and upgraded to achieve various observation methods like phase contrast, dark field, polarizing and DIC observation. The high numerical aperture semi-apochromatic objective lens has clear imaging, which is particularly suitable for applications such as FISH,FRET and CTC fluorescence in situ hybridization.
| M43F-N Upright Fluorescence microscope | |||
Frame | Host | Olympus BX43 frame | |
Eyepiece | Wide field 10X/23.5，diopter is adjustable | ||
Optional eyepiece 10X/25 | |||

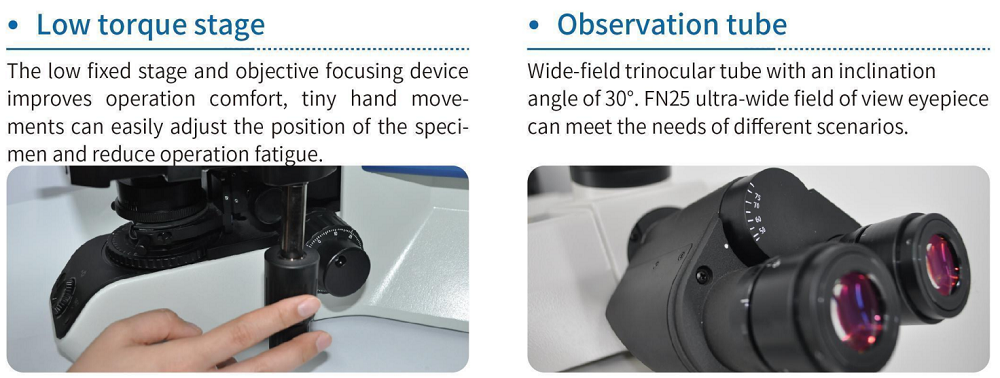

Eyepiece tube | Hinged type trinocular observation tube, high eyepoint, 30° inclination, Pupillary distance adjustment 50-75mm | ||
Nosepiece | Quintuple objective converter | ||
Stage | U-SVRB-4 stage | ||
Sample holder | U-HLDT-4 | ||
Condenser | Abbe condenser，NA 1.1 | ||
Light barrier | 150*100mm | ||
Power line | According to buyer’s country request | ||
Allen driver | M3.0 hexagon socket screwdriver | ||
Dust cover | Middle size dust cover 650*600 | ||
Bright field lighting | Warm LED illuminator | ||
Objectives | Plan semi-achromat fluorite objective M-UPLFLN 4X/0.13 ；WD：17.15mm | ||
Plan semi-achromat fluorite objective M-UPLFLN 10X/0.30；WD：7.68mm | |||
Plan semi-achromat fluorite objective M-UPLFLN 40X/0.75； WD：0.78mm | |||
Plan semi-achromat fluorite objective M-UPLFLN 100X/1.30；WD：0.15mm | |||

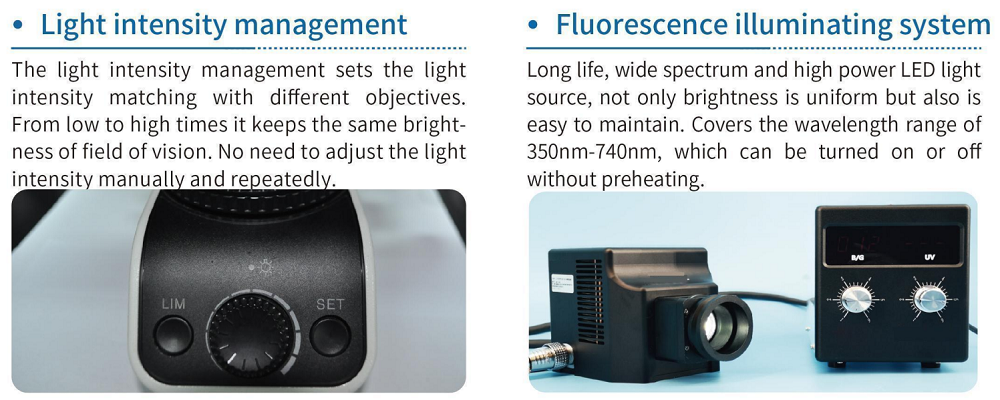

Epi-illuminating fluorescence system | Broad-spectrum LED light source | ||
Light box digital screen control box | |||
Light source connector | |||

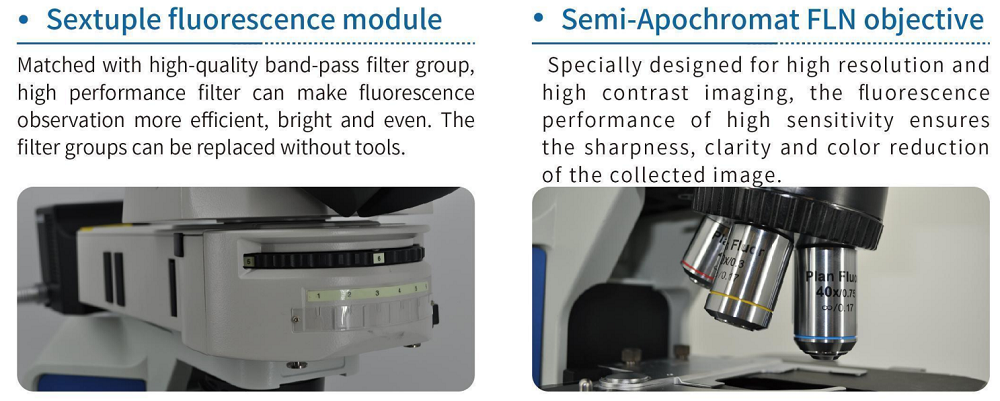

Epi-illuminating fluorescence illuminator FL-43（6 position fluorescence wheel） | |||
UV bandpass（FB-U-M） | EX：375/30nm；DM：415nm；EM：460/50nm | ||
Blue bandpass（FB-B-M） | EX：475/30nm；DM：505nm；EM：530/40nm | ||
Yellow longpass（FL-Y-M） | EX：560/40nm；DM：600nm；EM：610nmLP | ||
Optional accessories | ||
Parts | Specification | |
Objectives | Plan semi-achromat fluorite objective M-UPLFLN 4X/0.13 ；WD：17.15mm | |
Plan semi-achromat fluorite objective M-UPLFLN 10X/0.30；WD：7.68mm | ||
Plan semi-achromat fluorite objective M-UPLFLN 20X/0.50；WD：1.96mm | ||
Plan semi-achromat fluorite objective M-UPLFLN 40X/0.75； WD：0.78mm | ||
Plan semi-achromat fluorite objective M-UPLFLN 100X/1.30；WD：0.15mm | ||
Plan Fluor 4X/0.13 ；WD：17.15mm | ||
Plan Fluor 10X/0.30；WD：7.68mm | ||
Plan Fluor 20X/0.5；WD：2mm | ||
Plan Fluor 40X/0.75； WD：0.7mm | ||
Plan Fluor 100X/1.28；WD：0.15mm | ||
UPLFLN4X/0.13 Working distance：17mm（Olympus） | ||
UPLFLN10X2/0.3 Working distance：10mm（Olympus） | ||
UPLFLN20X/0.5 Working distance：2.1mm（Olympus） | ||
UPLFLN40X/0.75 Working distance：0.51mm（Olympus） | ||
UPLFLN100XO2/1.3 Working distance：0.2mm（Olympus） | ||
PLCN10X/0.25PH Working distance：10.6mm（Olympus） | ||
PLCN20X/0.4PH Working distance：1.2mm（Olympus） | ||
PLCN40X/0.65PH Working distance：0.6mm（Olympus） | ||
Phase contrast condenser | M-PCD-CX | |
BX condenser dovetail | ||
Fluorescence illuminator | LED module | MF-LED fluorescence attachment |
BGY/BYU/BGUR filters | ||
4 channels LED illuminator | MG120: 4 channels LED illuminator, excitation peak 365nm/385nm/395nm,460nm, 520nm/560nm, 625nm | |
Excitation cube | Name | Wavelength |
UV long-pass（FL-U-M） | EX：355/50nm；DM：410nm；EM：420nmLP | |
Blue long-pass（FL-B-M） | EX：475/30nm；DM：505nm；EM：510nmLP | |
Green long-pass（FL-G-M） | EX：530/40nm；DM：570nm；EM：575nmLP | |
Green band-pass（FB-G-M） | EX：530/40nm；DM：565nm；EM：605/55nm | |
Red band-pass（FB-R-M） | EX：620/50nm；DM：655nm；EM：690/50nm | |
BG dual channels（FB-BG-H） | FISH filters | |
Camera C-mount adapter | TV0.5XC-MO-4 | |
TV0.75XC-MO | ||
TV1XC-MO | ||
