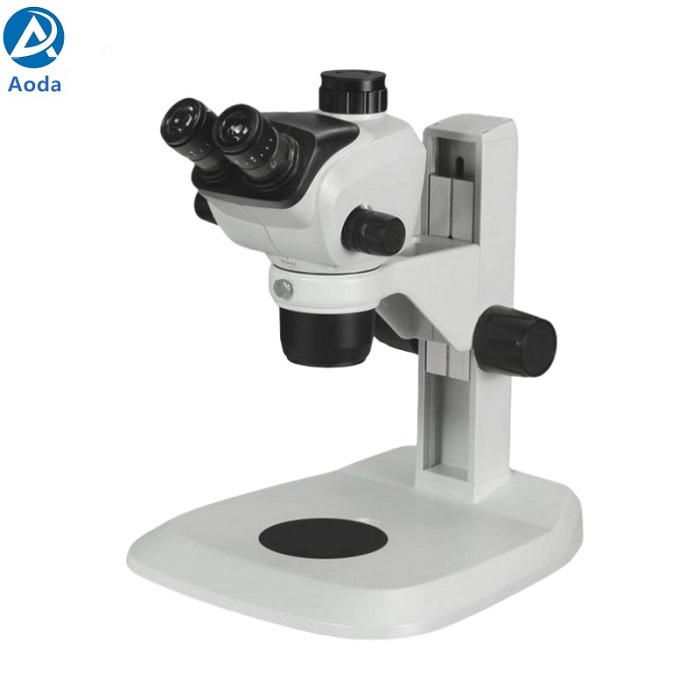

SZ Series Zoom Stereo Microscope
SZ series Zoom Stereo microscope including Three series: SZ650/SZ680/SZ810...
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
SZ Series Zoom Stereo Microscope
The SZ series stereo microscopes are mainly used for research in the textile industry, electronics industry, industry, and biology. This series is divided into three types: SZ650, SZ680, and SZ810.
SZ650 is the basic model with a magnification of 7X~45X, and only binoculars can be selected.
The magnification of SZ680 is 6.8X~47X, and the magnification of SZ810 is 6.5X~53X. You can choose the corresponding microscope according to the magnification you need. The most important thing about a stereo microscope is the head. Be sure to carefully check the parameters of the head when purchasing.
Outstanding Ergonomic Design
SZ680/810 35°viewing angle, SZ650 40°viewing angle, suitable for long-term sitting observation.
330mm×300mm big stand, high stability , apply to all kinds of anatomy of specimen.
Top Optical & Mechanical Design
Greenough optical system, built-in rotating shaft zoom system.
No tilting Image in left &right light path in complete pupillary distance , No dizziness feeling after long time observing.
Stereo angle for left & right light path is 12°, stereoscopic effect, large viewing field, high zoom ration
Excellent Technology And Quality
High resolution, large depth of field, excellent color restoration and contrast.
Operation comfortable(manufactured by high-precision machine, excellent assembly technology ).
High- end material(PC resin cover, aluminium alloy ,copper alloy parts, austenite stainless steel driving parts).
International Level Appearance Design
Elegant shape , high-end and integrated appearance design， comfortable operation.
Various Accessories,Complete Function.
Different video output connectors, built-in digital image model.
Illumination optional: LED, halogen lamp, cold light source etc. (100V-240V wide voltage input).
Various professional stands and operating attachments.
SZ series Zoom Stereo Microscope specification
Model | SZ650 | SZ680 | SZ810 |
Objectives Zoom Range | 0.7X-4.5X | 0.68X-4.7X | 0.65X-5.3X |
Zoom Ratio | 1 : 6.5 | 1 : 6.8 | 1 : 8.1 |
Field Diameter (mm) | Φ22 | Φ23 | Φ24 |
Working Distance (mm) | 110 | 110 | 110 |
Stereo Angle ( °) | 12 | 12 | 12 |
Viewing Angle ( °) | 40 | 35 | 35 |
Interpupillary Adjustable Distance (mm) | 50-75 | 50-75 | 50-75 |
Video Output Distribution | NO | 100%（0:100 standard） | |
70:30 (optional) 70% for eyepiece, 30% for photography | |||
Guide Rail Stand Focusing Distance (mm) | 80 | ||
Pillar Stand Focusing Distance (mm) | 115 | ||
SZ650 Series Objective & Eyepiece Parameter List (0.7×-4.5×)
Additional Objective | 0.5X | 1X(built-in) | 2X | |
W.D | 189mm | 110mm | 36mm | |
10XEyepiece/Φ22mm | Magnification | 3.5～22.5 | 7～45 | 14～90 |
Field dia. (mm) | 62.9～9.8 | 31.43～4.89 | 15.71～2.44 | |
15XEyepiece/Φ16mm | Magnification | 5.25～33.75 | 10.5～67.5 | 21～135 |
Field dia. (mm) | 45.71～7.11 | 22.86～3.56 | 11.43～1.78 | |
20XEyepiece/Φ12mm | Magnification | 7～45 | 14～90 | 28～180 |
Field dia.(mm) | 34.28～5.33 | 17.14～2.67 | 8.57～1.33 | |
SZ680 Series Objective & Eyepiece Parameter List (0.68×-4.7×)
Additional Objective | 0.5X | 1X(built-in) | 2X | |
W.D | 189mm | 110mm | 36mm | |
10XEyepiece/Φ23mm | Magnification | 3.4～23.5 | 6.8～47 | 13.6～94 |
Field dia. (mm) | 67.65～9.79 | 33.82～4.89 | 16.91～2.46 | |
15XEyepiece/Φ16mm | Magnification | 5.1～35.25 | 10.2～70.5 | 20.4～141 |
Field dia. (mm) | 47.06～6.81 | 23.53～3.40 | 11.76～1.70 | |
20XEyepiece/Φ12mm | Magnification | 6.8～47 | 13.6～94 | 27.2～188 |
Field dia.(mm) | 35.294～5.11 | 17.65～2.55 | 8.82～1.28 | |
SZ810 Series Objective & Eyepiece Parameter List (0.65×-5.3×)
Additional Objective | 0.5X | 1X(built-in) | 2X | |
W.D | 189mm | 110mm | 36mm | |
10XEyepiece/Φ24mm | Magnification | 3.3～25.5 | 6.6～51 | 13.2～102 |
Field dia. (mm) | 72.73～9.41 | 36.36～4.71 | 18.18～2.35 | |
15XEyepiece/Φ16mm | Magnification | 4.95～38.25 | 9.9～76.5 | 19.8～153 |
Field dia. (mm) | 48.48～6.27 | 24.24～3.14 | 12.12～1.57 | |
20XEyepiece/Φ12mm | Magnification | 6.6～51 | 13.2～102 | 26.4～204 |
Field dia. (mm) | 39.64～4.71 | 18.18～2.35 | 9.09～1.18 | |

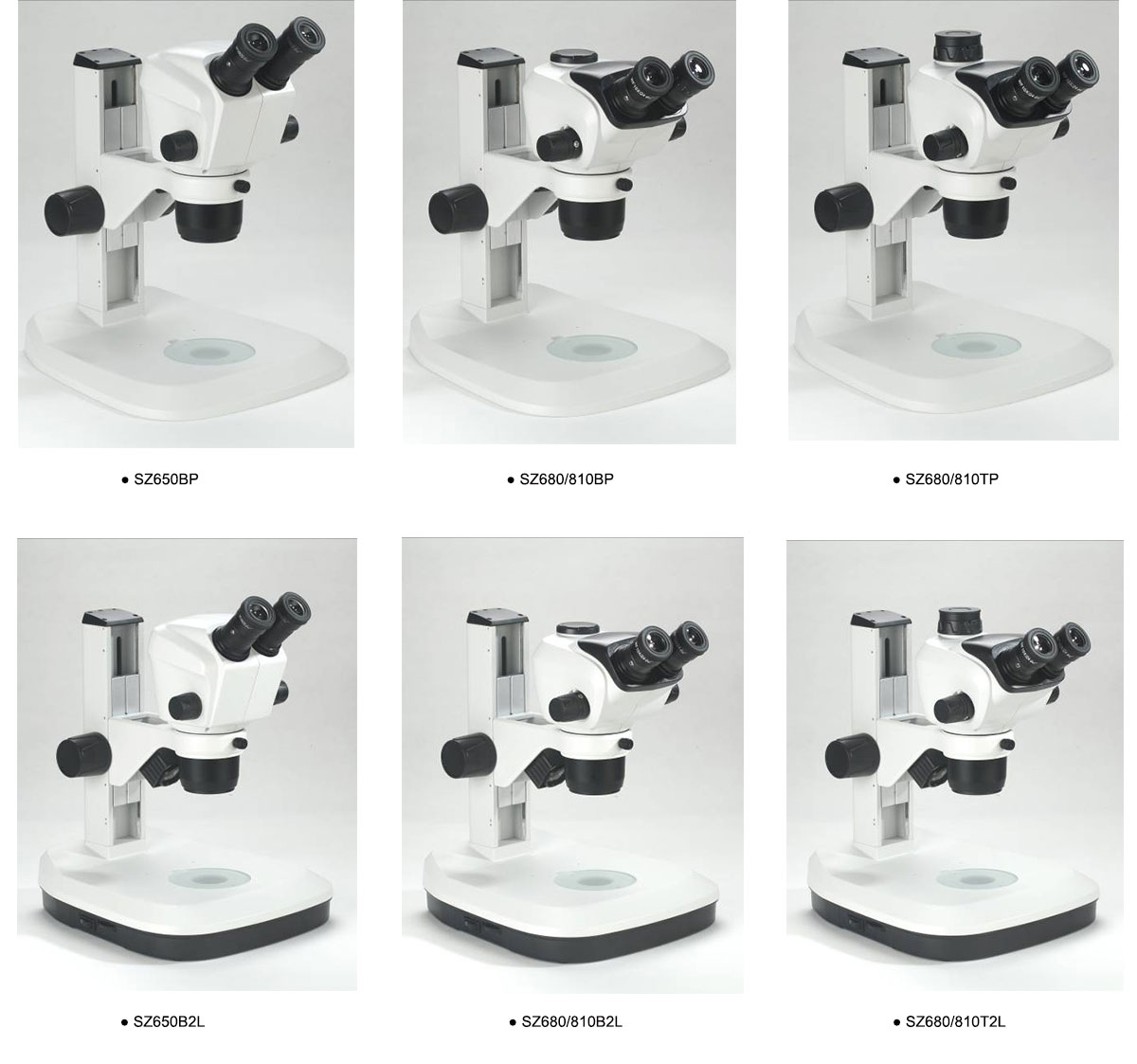

SZ650/680/810 Series Zoom Stereo Microscope Parameter
Items | SZ650BP | SZ650B2L | SZ680BP | SZ680B2L | SZ810BP | SZ810B2L | |
Main Body | Binocular | ● | ● | ● | ● | ● | ● |
Trinocular | ○ | ○ | ○ | ○ | |||
10XEyepiece/Φ22mm | ●● | ●● | |||||
10XEyepiece/Φ23mm | ●● | ●● | |||||
10XEyepiece/Φ24mm | ●● | ●● | |||||
15XEyepiece/Φ16 mm | ○○ | ○○ | ○○ | ○○ | ○○ | ○○ | |
20XEyepiece/Φ12mm | ○○ | ○○ | ○○ | ○○ | ○○ | ○○ | |
0.5X/0.75X/2X Objective | ○ | ○ | ○ | ○ | ○ | ○ | |
Focusing unit | ● | ● | ● | ● | ● | ● | |
No light | ● | ● | ● | ||||
Reflecting 3W LED | ● | ● | ● | ||||
Transmitting 3W LED | ● | ● | ● | ||||
Black & white Plate | ● | ● | ● | ● | ● | ● | |
Glass Plate | ● | ● | ● | ||||
Arm stand | ● | ● | ● | ● | ● | ● | |
Pillar stand | ○ | ○ | ○ | ○ | ○ | ○ | |
Focusing Arm stand | ○ | ○ | ○ | ○ | ○ | ○ | |
Base (330×300mm) | ● | ● | ● | ● | ● | ● | |
C-mount 0.5X，0.7X，1X | ○ | ○ | ○ | ○ | |||
Note："●" In Table Is Standard Outfits, "○" Is Optional Accessories.
