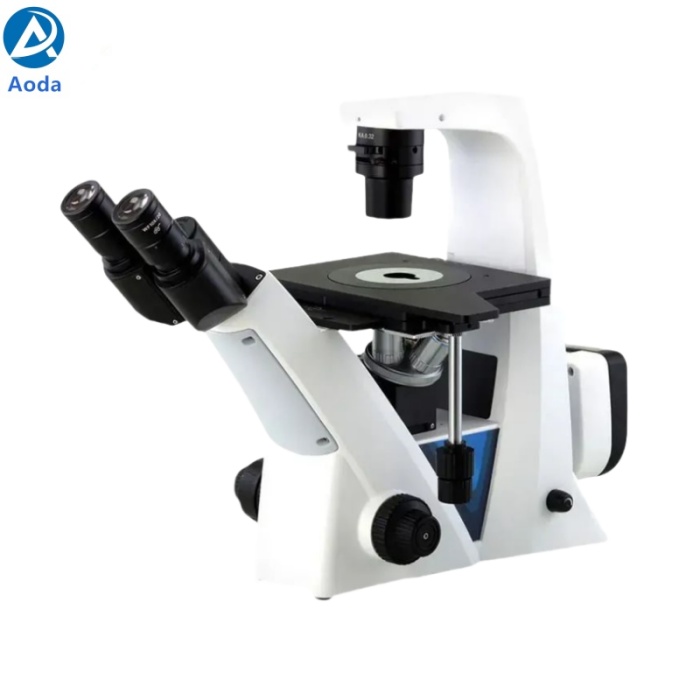

BDS300 Series Inverted Biological Microscope
BDS300 inverted biological microscope for life science research...
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service

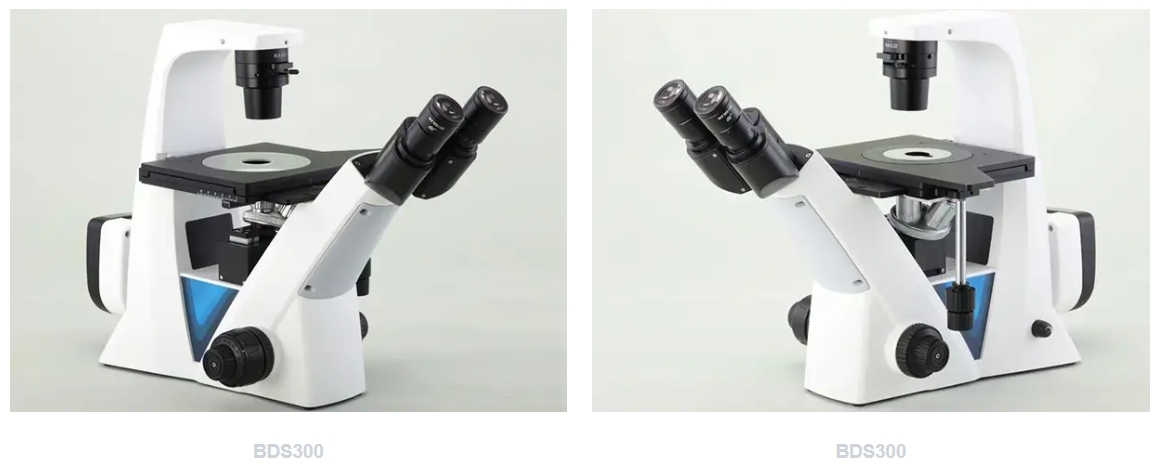

BDS300 Series Inverted Biological Microscope
BDS300 is an inverted biological microscope we’ve launched this year. BDS300 Series Inverted Biological Microscope is a kind of biological microscope with an advantage in price and comprehensive configuration in our BDS series. BDS300 follows the previous objective lens configuration, combining bright field and phase contrast observation, and other magnifications can be selected. In addition, the product has a built-in 0.65X C-mount, which is convenient for connecting digital heads. Brand-new BDS300 inverted biological microscope for life science research. The infinity optical system is perfect for cell tissue observation and cultivation.
| Features of BDS300 Series Inverted Biological Microscope
| Objective Parameter List (Cover-glass thickness1.1mm)
| Objectives | N.A. | Working distance(mm) | |
| LWD Infinity Plan Objectives | L Plan FL 4X | 0.11 | 12.1 |
| L Plan FL 10X | 0.25 | 10.3 | |
| L Plan FL 20X | 0.45 | 5.8 | |
| L Plan FL 40X | 0.65 | 5.1 | |
| LWD Infinity Plan Phase Contrast Objectives | L Plan FL PHP 10X(Both for Bright Field & Phase Contrast) | 0.25 | 10.3 |
| L Plan FL PHP 20X(Both for Bright Field & Phase Contrast) | 0.45 | 5.8 | |
| L Plan FL PHP 40X(Both for Bright Field & Phase Contrast) | 0.65 | 5.1 |
| Specification of BDS300 Inverted Biological Microscope
| Item | Specification | Outfits | |
| Eyepiece | WF10X/20mm | ●● | |
| LWD Infinity Plan Objectives | L Plan FL 4X／0.11 | W.D.=12.1mm | ○ |
| L Plan FL 10X／0.25 | W.D.=10.3mm | ● | |
| L Plan FL 20X／0.45 | W.D.=5.8mm | ○ | |
| L Plan FL 40X／0.65 | W.D.=5.1mm | ● | |
| LWD Infinity Plan Phase Contrast Objectives | L Plan FL PHP 10X／0.25(Both for Bright Field & Phase Contrast) | W.D.=10.3mm | ○ |
| L Plan FL PHP 20X／0.45(Both for Bright Field & Phase Contrast) | W.D.=5.8mm | ● | |
| L Plan FL PHP 40X／0.65(Both for Bright Field & Phase Contrast) | W.D.=5.1mm | ○ | |
| Annular Spot | 10X | ○ | |
| 20X/ 40X | ● | ||

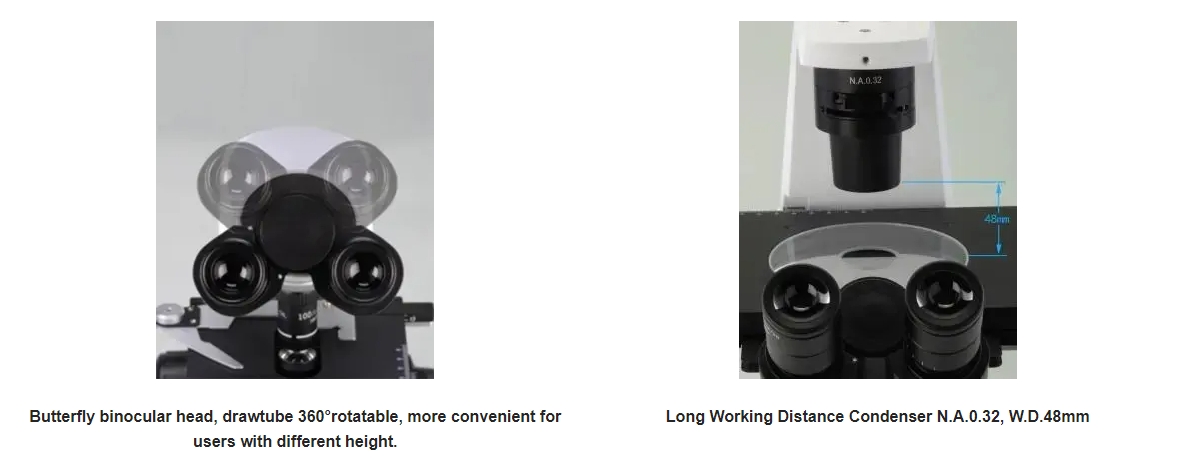

| Butterfly Siedentopf Head | Eyepiece tube 360°rotated,Inclined 45°, IPD: 48-75mm,Light distribution: 80:20(80% for eyepiece,and 20% for camera tube) | ● | |
| Nosepiece | Quadplex | ● | |

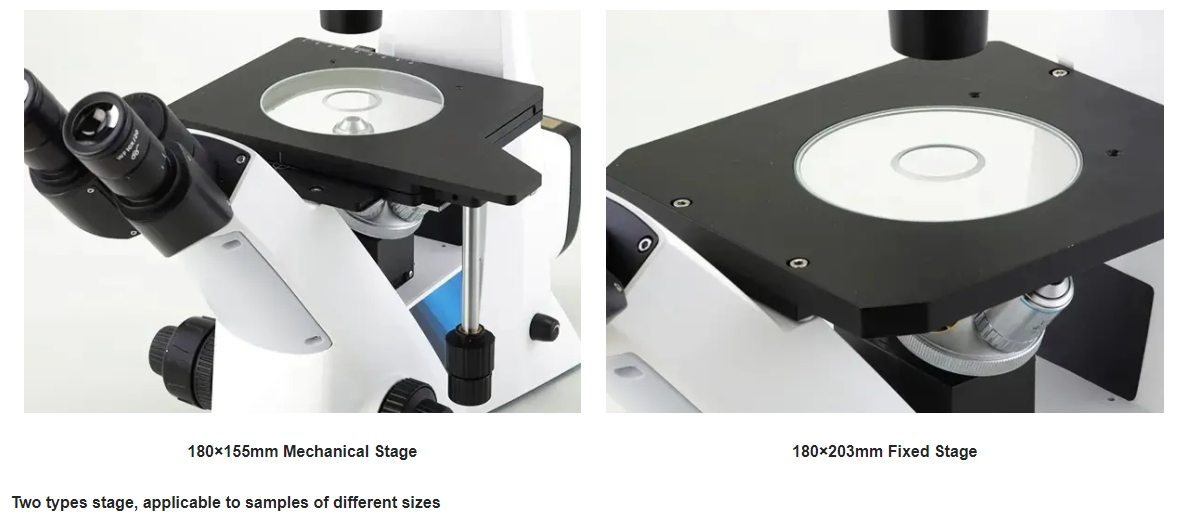

| Mechanical Stage | Stage size: 180 mm×155mm, Moving range:75×40mm, Scale: 0.1mm, Round slide size: φ110mm, Glass Holder (external diameter φ110mm, inside diameter φ30mm) | ● | |
| Fixed Stage | Stage size: 180 mm×203mm, Round slide size: φ110mm，Glass Holder(external diameter φ110mm, inside diameter φ30mm) | ○ | |
| Drop-shaped Metal Holder(external diameter φ110mm, inside diameter φ25mm) | ○ | ||
| Coaxial Coarse and Fine Focusing unit | Coarse stroke: 10mm, Fine stroke per rotation: 0.2mm, fine division 2 μm. | ● | |
| Condenser | Long working distance, N.A.0.32,Working distance: 48mm | ● | |

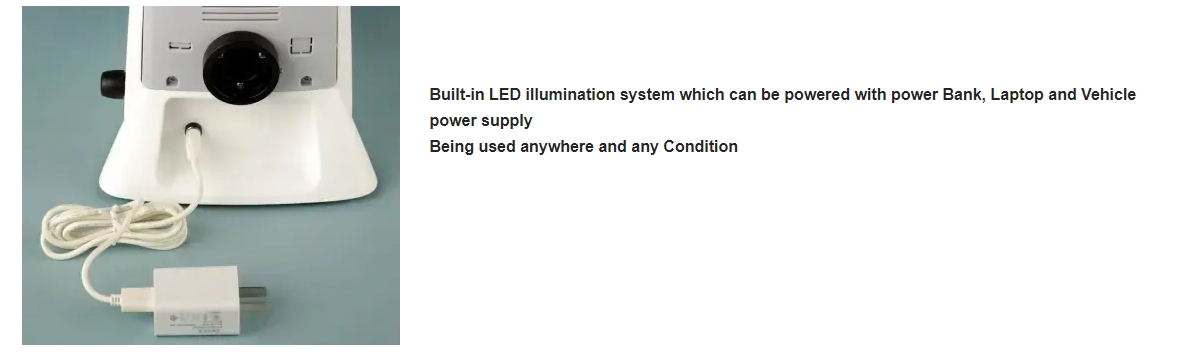

| Illumination | 5WLED Warm lamp (Input voltage：100V～240V) | ● | |
| Filter | Green | ● | |
| Blue /Yellow /Grey | ○ | ||

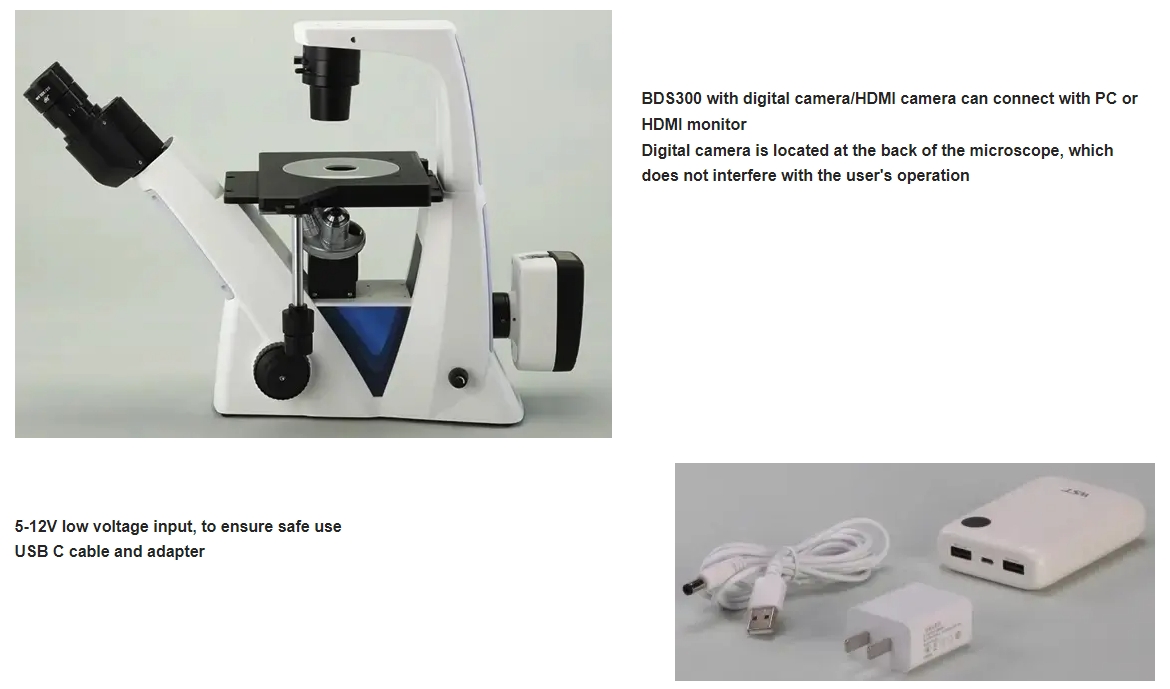

| C-mount | 0.65×(built-in) | ● | |
Note: “●”In Table Is Standard outfits, “○” Is Optional Accessories.
Packing Size: 515mm× 480mm× 315mm Gross Weight: 9kgs Net Weight: 7kgs
