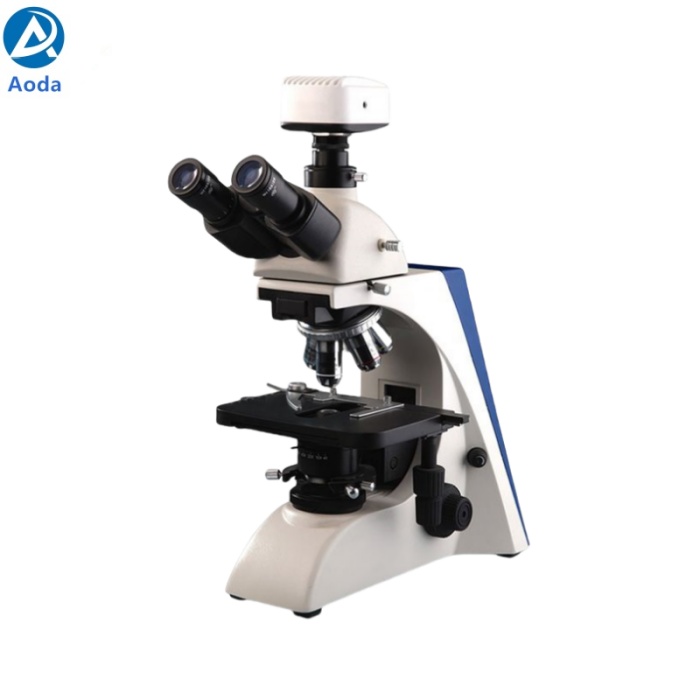

BK6000 Series Biological Microscope
BK6000 Series Biological Microscope is mainly used for the observation and research of biological slices....
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
BK6000 Series Biological Microscope
BK6000 Series Biological Microscope is a laboratory microscope. It is a kind of biological microscope mainly used for the observation and research of biological slices.
It can be used in biological laboratories, hospitals, research institutes, and institutions of higher learning. This series is developed and manufactured on the basis of BK5000.
The platform, condenser, and eyepiece are all updated. It is a top-end microscope. It can be upgraded to a phase contrast microscope, fluorescence microscope, and dark
field microscope according to your own needs.
| Features of the BK6000 Series Biological Microscope
Wide field eyepiece, view field up to Φ22mm， more comfortable for observation.
Trinocular observing tube with dual transform.
Light distribution (both): 100 : 0(100% for eyepiece) and 80 : 20(80% for trinocular head and 20% for eyepiece).
The integrated stage is safer than the traditional stage.

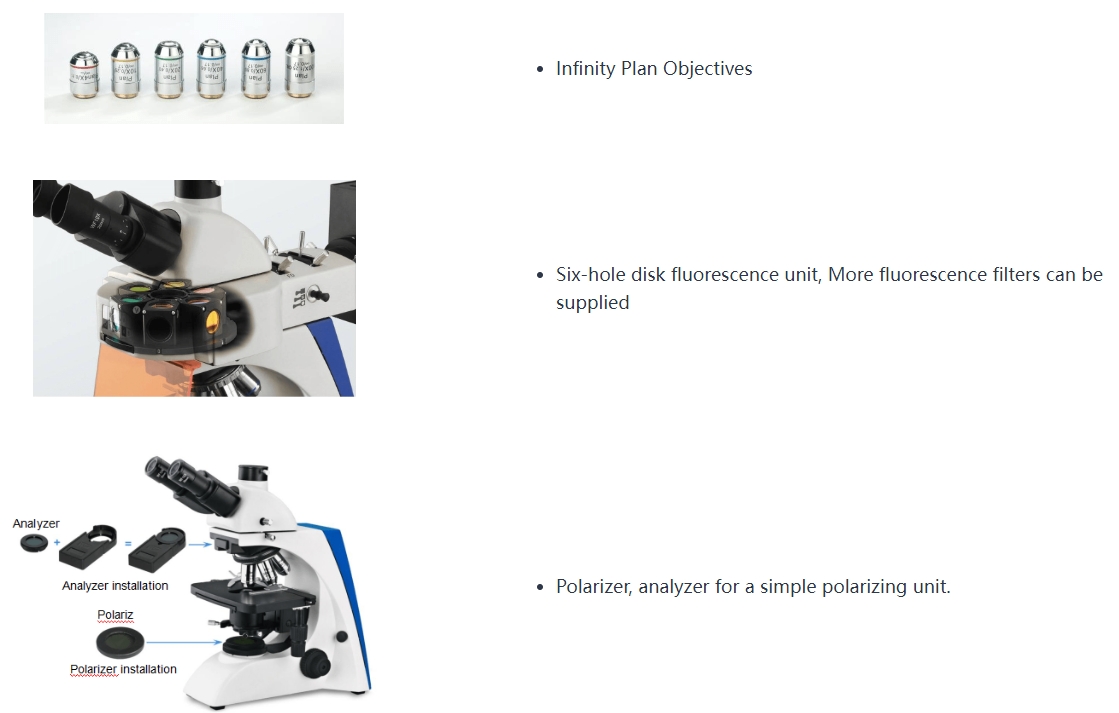

| Components of BK6000 Series Biological Microscope
| BK6000 Series Biological Microscope Specification

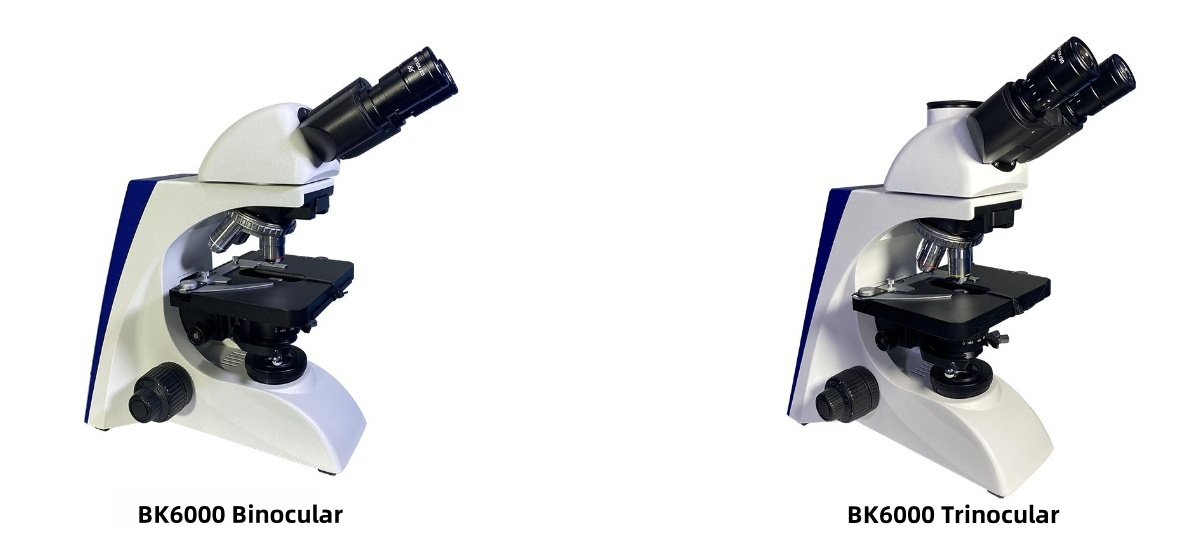

| Items | Specification | BK6000 binocular | |
| Eyepiece | WF10×/22mm (diopter adjustable) | ●● | |
| Infinity Plan Objectives | PLAN 4×/0.10 | W.D.=12.10mm | ● |
| PLAN 10×/0.25 | W.D.=4.64mm | ● | |
| PLAN 20×/0.40(S) | W.D.=2.41mm | ● | |
| PLAN 40×/0.66(S) | W.D.=0.65mm | ● | |
| PLAN 100×/1.25(S,Oil) | W.D.=0.12mm | ● | |
| PLAN2×/0.06 | WD=7.2mm | o | |
| PLAN 60×/0.80(S) | W.D.=0.33mm | o | |
| PLAN 100×/1.15(S,W) | W.D.=0.19mm | o | |
| Infinity Plan Semi Apochromatic Objective | UPlanFLN 10X/0.30 | W.D.=7.68mm | o |
| UPlanFLN 20X/0.50 | W.D.=1.96mm | o | |
| UPlanFLN 40X/0.75 | W.D.=0.78mm | o | |
| UPlanFLN 100X /1.30(Oil) | W.D.=0.15mm | o | |
| Seidentopf Binocular Head | Inclined 30°,rotatable 360°,Interpupilary distance:48mm-76mm | ● | |
| Seidentopf Trinocular Head | Inclined 30°,rotatable 360°,Interpupilary distance:48mm-76mm,Light distribution (both):100:0(100%for eyepiece)80:20(80%for trinocular head and 20%for eyepiece) | o | |
| Nosepiece | Quintuple | ● | |
| Mechanical Stage | Integrated stage Stage size:182 mm×140mm,Travel range:77mm×52mm Two-slide holder | ● | |
| Swing Out Condenser | N.A.0.9/0.13,Swing out with iris diaphragm. | ● | |
| Koehler Illumination | 12V/30WHalogen Lamp Wide voltage input:100V～240V Field diaphragm,center adjustable | ● | |
| LED Wumination | 5WLED (DC input) Wide voltage input:100V～240V Field diaphragm , center adjustable | o | |
| Filter | Blue | ● | |
| Green /Amber /Grey | o | ||
| C-mount | 1×/0.35X/0.5×/0.75×C-mount (focus adjustable | o | |
| Fluorescence Attachment | Epi fluorescence unit(six-hole disc media which can be fixed with Uv N/B/G and another filters),100W mercury lamp. | o | |
| Epi fluorescence unit(six-hole disc media which can be fixed Uv V/B/G),LED fluorescence lamp. | o | ||

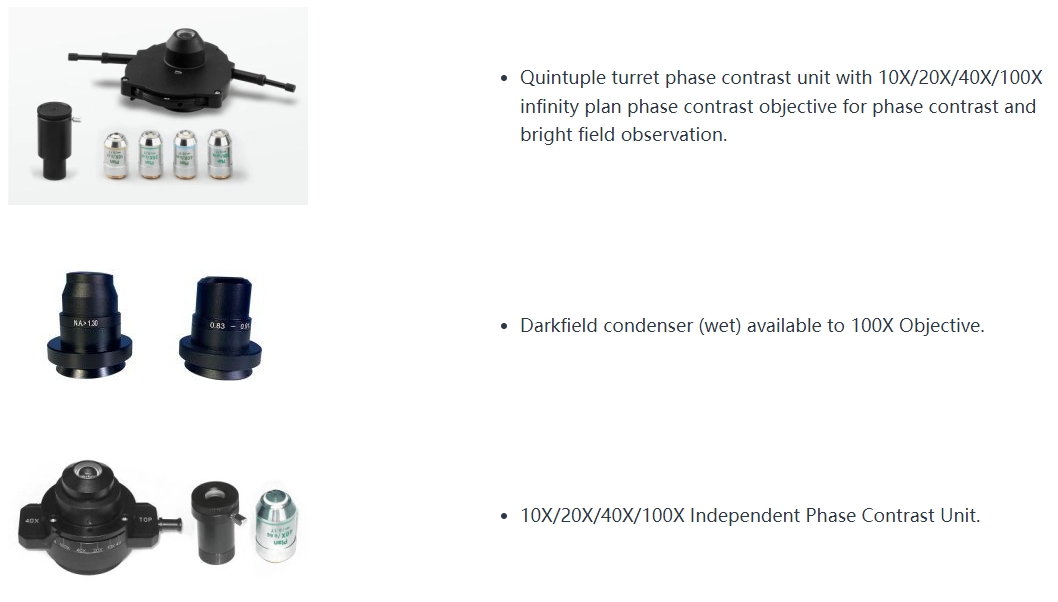

| Phase Contrast Unit | Quintuple hole turret 10×120×140×/100×phase contrast objective | o | |
| Independent slot 10×120×/40×/100×phase contrast objective | o | ||
| Dark Field Unit | Dark field condenser (dry), apply to 4×-40×objective | o | |
| Dark field condenser (wet), apply to 100×objective | o | ||
| Polarizing Attachment | Analyzer /Polarizer | o | |
Note: “●”In Table Is Standard outfits, “○” Is Optional Accessories.
Packing Size:520mm×475mm×285mm Gross Weight: 12 kgs Net Weight: 10kgs
