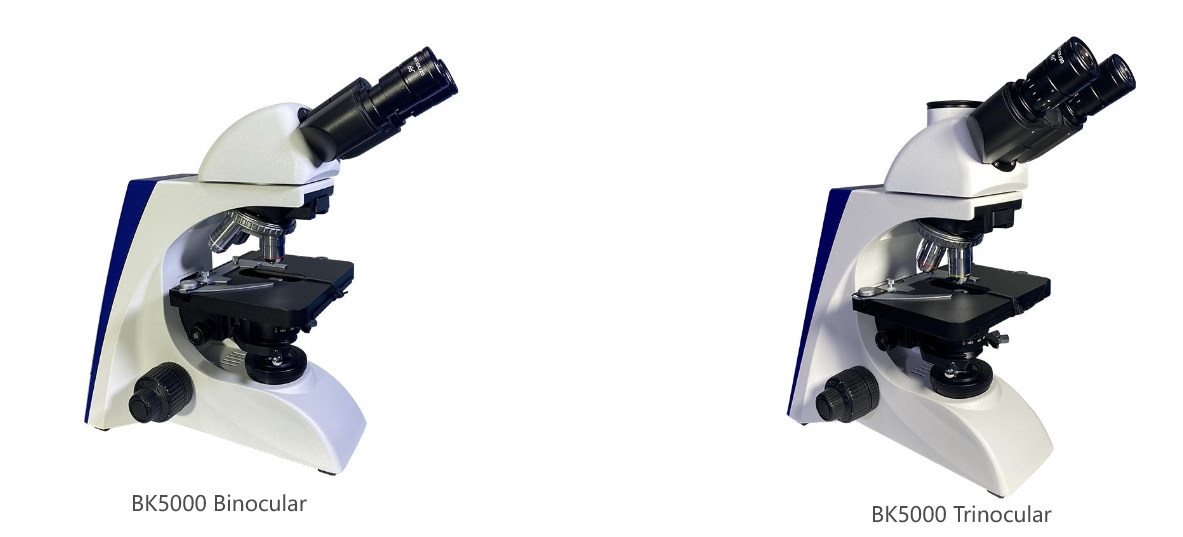

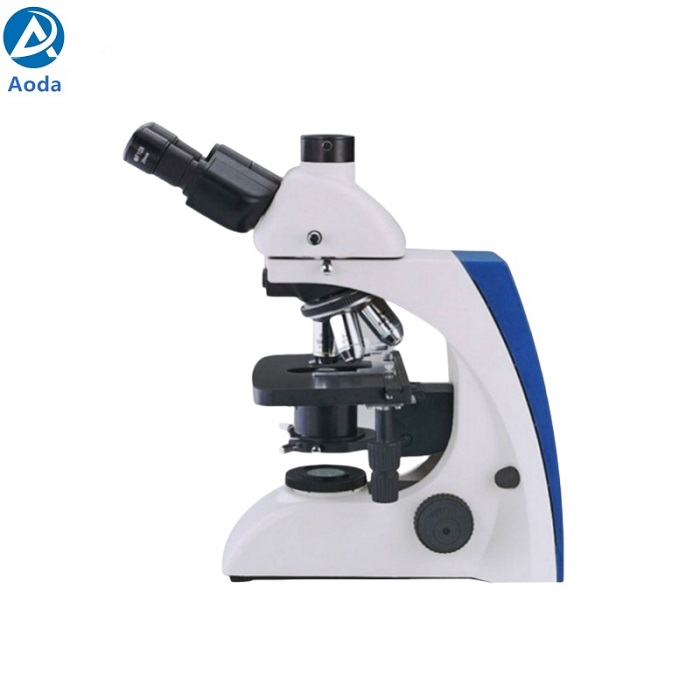

BK5000 Series Infinite optical system Biological Microscope
BK5000 Series Biological Microscope is the best-selling laboratory biological microscope in our factory. This microscope adopts an infinity optical system, Plan objective lens, and wide field eyepiece.
The configuration of this model is relatively complete, and a phase contrast device and fluorescence device can be added. The observation effect is excellent, equipped with Plan 4X/10X/20X/40X/100X objective lens to meet different magnifications. The BK5000 microscope model has a stable structure, and we have upgraded and improved this microscope many times. Now it has excellent performance and can meet the parameter requirements of most laboratories on the market.
| Features of BK5000 Series Biological Microscope

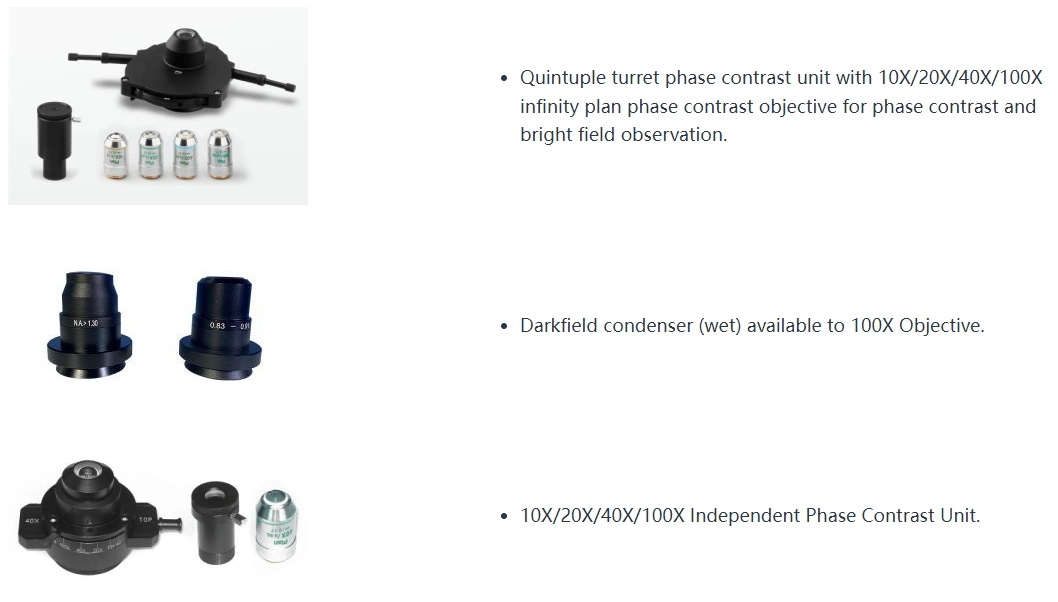

Quintuple Turrent Phase Contrast Device（Equipped with phase contrast 4X/10X/40X/100X objective. For both bright field and phase contrast.)
Dry dark field condenser ( For 4X~40X objective).
Wet dark field condenser ( For 100X objective).
Independent Phase Contrast Unit (10X/20X/40X/100X).

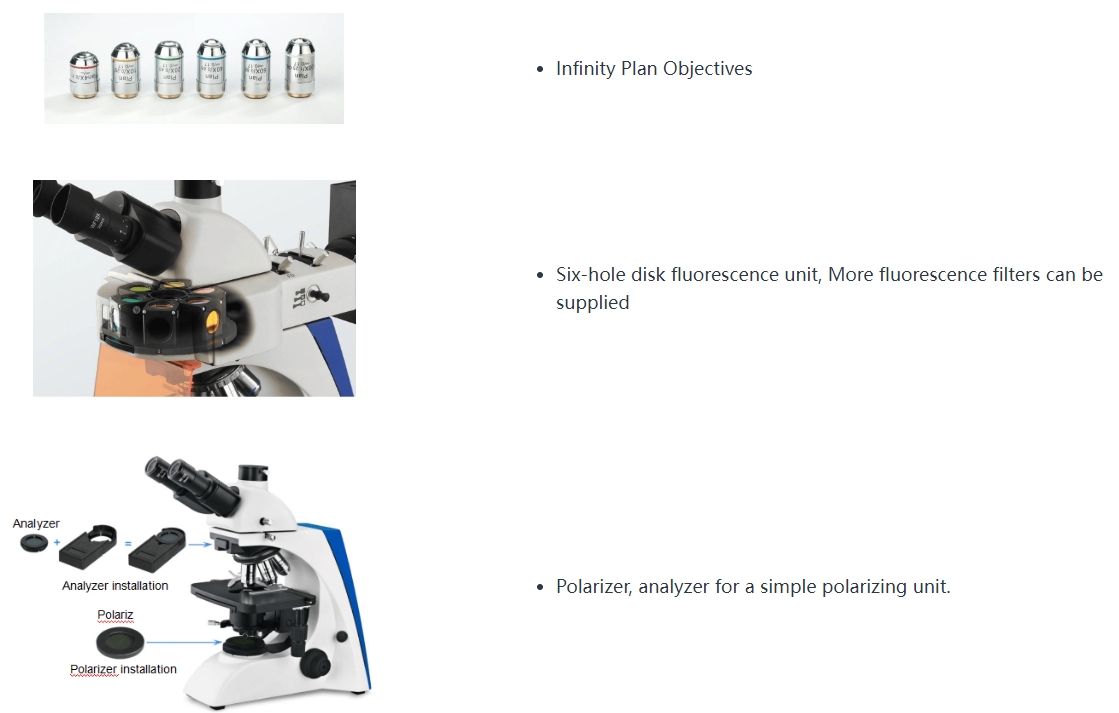

Plan Objectives Infinity.
| Components of BK5000 Series Biological Microscope
|BK5000 Series Biological Microscope Specification
Items | Specification | Outfits | |
Eyepiece | WF10×／20mm (23.2mm) | ●● | |
Infinity Plan Objectives | PLAN 4×／0.10 | W.D.=12.10mm | ● |
PLAN 10×／0.25 | W.D.=4.64mm | ● | |
PLAN 20×／0.40(S) | W.D.=2.41mm | ● | |
PLAN 40×／0.66(S) | W.D.=0.65mm | ● | |
PLAN 100×／1.25(S, Oil) | W.D.=0.12mm | ● | |
PLAN 2.5×／0.07 | W.D.=8.47mm | ○ | |
PLAN 60×／0.80(S) | W.D.=0.33mm | ○ | |
PLAN 100×／1.15(S, W) | W.D.=0.19mm | ○ | |
Infinity Plan Semi Apochromatic Objective | UPlanFLN 10X/0.30 | W.D.=7.68mm | ○ |
UPlanFLN 20X/0.50 | W.D.=1.96mm | ○ | |
UPlanFLN 40X/0.75 | W.D.=0.78mm | ○ | |
UPlanFLN 100X /1.30 (Oil) | W.D.=0.15mm | ○ | |
Seidentopf Binocular Head | Inclined 30°,Rotatable 360°, Interpupilary Distance:48mm-75mm | ● | |
Seidentopf Trinocular Head | Inclined 30°,Rotatable 360°, Interpupilary Distance:48mm-75mm, Light Distribution: 100: 0 / 80:20 | ○ | |
Nosepiece | Quintuple | ● | |
Mechanical Stage | Stage Size: 175mm×145mm,Travel: 78mm×55mm | ● | |
Integrated stage Stage size: 182 mm×140mm,Travel range: 77mm×52mm | ○ | ||
Condenser | Abbe N.A. 1.25 with iris diaphragm. | ● | |
Swing Out Condenser, N.A. 0.9/0.13, with iris diaphragm. | ○ | ||
Koehler Illumination Wide voltage input: 100V～240V Field diaphragm , center adjustable | 12V/20W Halogen Lamp | ○ | |
12V/30W Halogen Lamp | ○ | ||
3W-LED Illumination | ● | ||
Filter | Blue | ● | |
Green /Amber /Grey | ○ | ||
C-mount | 1×/0.35×/0.5×/0.75× C-mount (focus adjustable) | ○ | |
Fluorescence Attachment | Epi fluorescence unit ( six-hole disc media which can be fixed with Uv /V/B/G and another filters) ,100W mercury lamp. | ○ | |
Epi fluorescence unit ( six-hole disc media which can be fixed Uv /V/B/G), 5W-LED fluorescence lamp. | ○ | ||
Phase Contrast Unit | Quintuple hole turret 10× /20× /40× /100× phase contrast objective | ○ | |
Independent slot 10× /20× /40× /100× phase contrast objective | ○ | ||
Dark Field Unit | Dark field condenser (dry)，apply to 4×- 40× objective | ○ | |
Dark field condenser (wet)，apply to 100× objective | ○ | ||
Polarizing Attachment | Analyzer / Polarizer | ○ | |
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
Packing Size: 542mm×265mm×355mm Gross Weight: 12 kgs Net Weight: 10kgs
