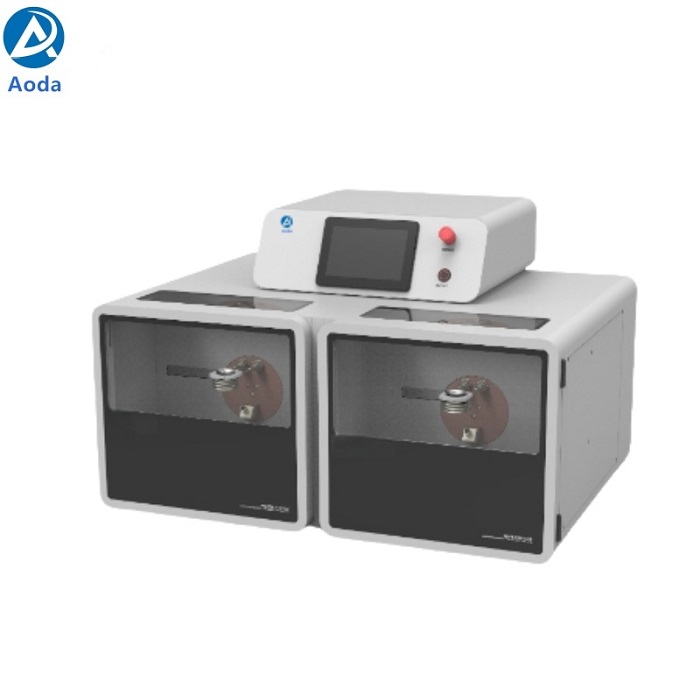

High frequency induction Fusion Machine
The AHF Series High-frequency Induction Fusion Machine is designed to make glass beads for XRF analysis in different industries and applications, such as geology, building industry, metallurgy, cement industry, coal industry and more.
The glass fusion method is an essential technique for XRF sample preparation, which effectively reduces and eliminates undesirable factors such as the particle effect, matrix effect, and mineral effect of samples. It greatly improves the accuracy of XRF analysis. This machine features a high-frequency induction heating design, which enables rapid heating and cooling with a well-engineered structure. It also incorporates a high-precision infrared temperature sensor and advanced PID temperature control for real-time temperature monitoring and precision during the fusion process. This ensures the excellent quality of the glass frit.
High Automation
Automatic sample fusing and casting: users only need to put the sample into the machine and press one button to complete the entire process of pre- oxidation, heating and melting, shaking well, casting into shape, and cooling down.
Automatic shaking and mixing during the fusion process to maintain the uniformity of the fused sample.
High Efficiency
Induction heating design allows for rapid heating and cooling.
Fast sample preparation speed of around 5-10min per batch.
High-precision infrared temperature measurement system, combined with PID intelligent temperature control, allows for accurate temperature control during the fusion process.
Easy Operation
Touch screen design make HF Series easy to operate, safe and reliable.
Operator can also self-set and save sample preparation programs for future use.

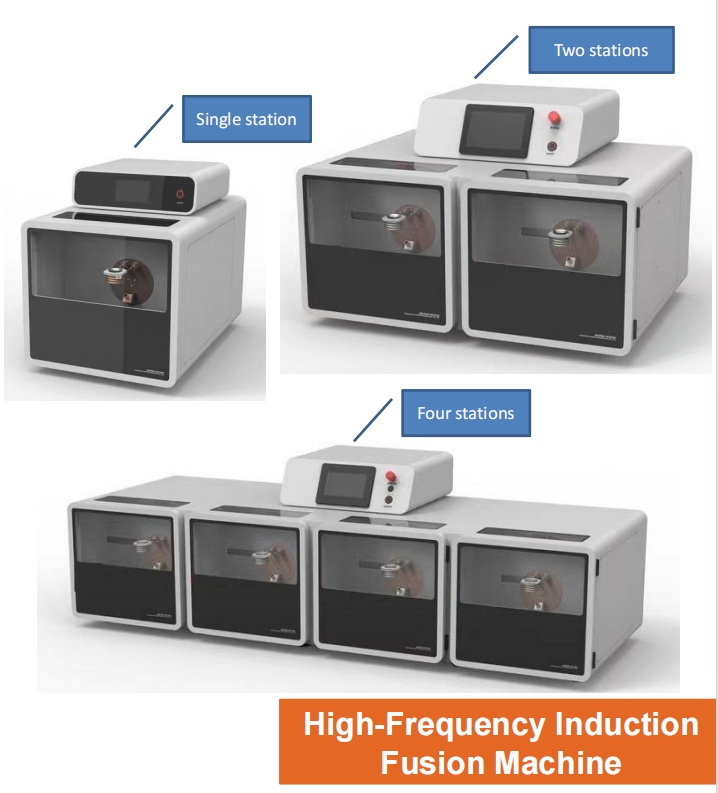

According to different work load, single-station, double-station and four-station modes are available for users to choose.
High Safety
A heat–resistant ceramic protection device designed for the 95 % platinum-5% gold crucible and forming mold to prolong their service life.
The built-in exhaust system removes the harmful gas generated during the fusion process to protect the operator’s health.
The alarm of over-voltage, over-current, over-heating, over-temperature and lack of water to ensure safe and stable use.
Model | AHF30 series | AHF32 series | AHF34 series |
Numbers of work station | 1 | 2 | 4 |
Sampler positions per work station | AFH3000/3200/3400 : 1 AHF3002/3202/3404 : 2 | ||
Heating method | High frequency induction heating | ||
Temperature range | RT-1300℃ | ||
Temp.control method | High precision infrared temperature sensor with PID temperature control technology | ||
Molding method | Automatic casting,5-10min per batch | ||
Control method | Touch screen,automatic or manual | ||
Cooling method | Indudction coil with external water chiller,flow ≥3L/min,water pressure≤0.2MPa,water temp.≤40℃,air-cooled control system | ||
Working process | Preheating-->Oxidation-->Fusing-->Fusing-->Shaking-->Automatic-->Casting-->Cooling | ||
Safety protection | Over pressure,over current,overheating,lack of water,over temperature protection | ||
Requirements for crucible | 95% platinum; 5% gold,85g for each | ||
Power supply | AC220V50/60Hz | ||
Power | 8KW | 16KW | 32KW |
Net weight | 45kg | 90kg | 100kg |
Dimension (L*W*H) | 480x840x580mm | 1000x840x640mm | 2000x840x640mm |
