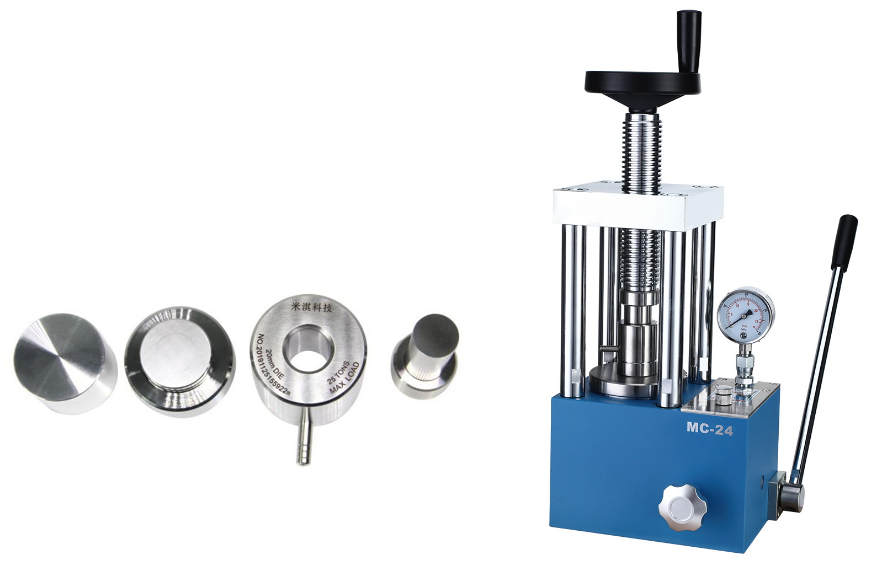

Single punch Manual powder tablet pressure machine
Manual powder tablet press is mainly used for pressing sample tablets with a diameter of 3mm-150mm. It is equipped with various sizes of molds and uses the mechanical lever principle of the tablet press. It does not leak oil during long-term use and has s...
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Single punch Manual powder tablet pressure machine
Manual powder tablet press machine is mainly used for pressing sample tablets with a diameter of 3mm-150mm. It is equipped with various sizes of molds and uses the mechanical lever principle of the tablet press. It does not leak oil during long-term use and has stable performance.
Model | MC-5 | MC-12 | MC-15 | MC-24 | MC-30 | MC-40 |
Pressure range | 0~5T | 0~12T | 0~15T | 0~24T | 0~30T | 0~40T |
Piston diameter | 45mm | 70mm | 80mm | 95mm | 110mm | 130mm |
Pressure gauge | Dual scale display | |||||
Maximum piston stroke | 30mm | 40mm | 50mm | |||
Pressure stability | ≤1mpa/10min | |||||
Table diameter | 80mm | 90mm | 105mm | 120mm | 140mm | |
Number of columns | 2 | 2/4 | 4 | 4 | 4 | |
Dimensions | 210x150x350mm | 225x155x380mm | 245x175x415mm | 245x175x415mm | 275x195x420mm | 295x215x500mm |
Weight | 20kg | 28kg | 28kg/40kg | 42kg | 56kg | 75kg |
Column spacing | 85x120mm | 96x130mm | 140x150mm/80x130mm | 80x150mm | 92x160mm | 106x185mm |
Available mold diameter | 3~14mm | 3~25mm | 3~40mm/3~25mm | 3~40mm | 3~50mm | 3~60mm |
