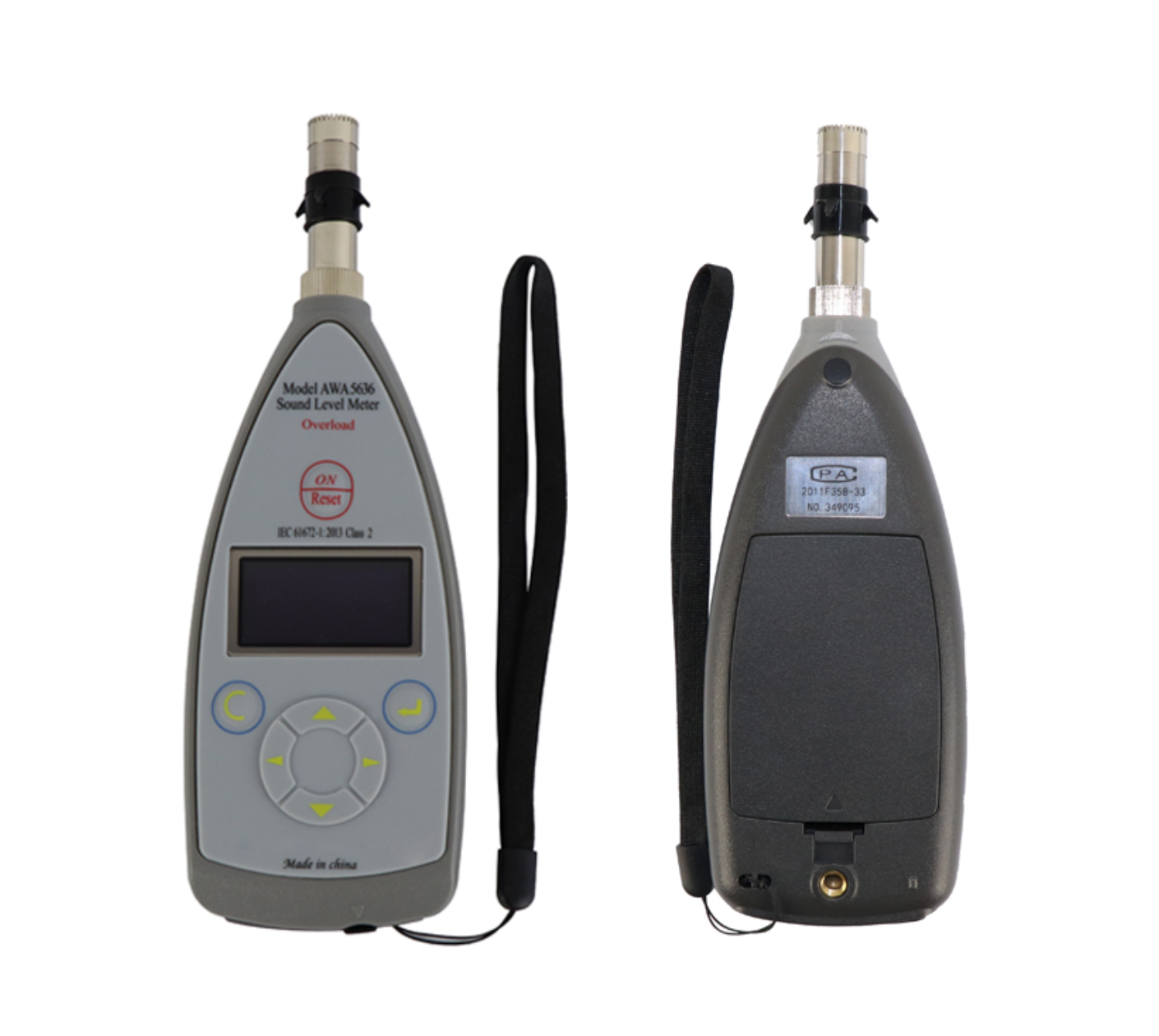

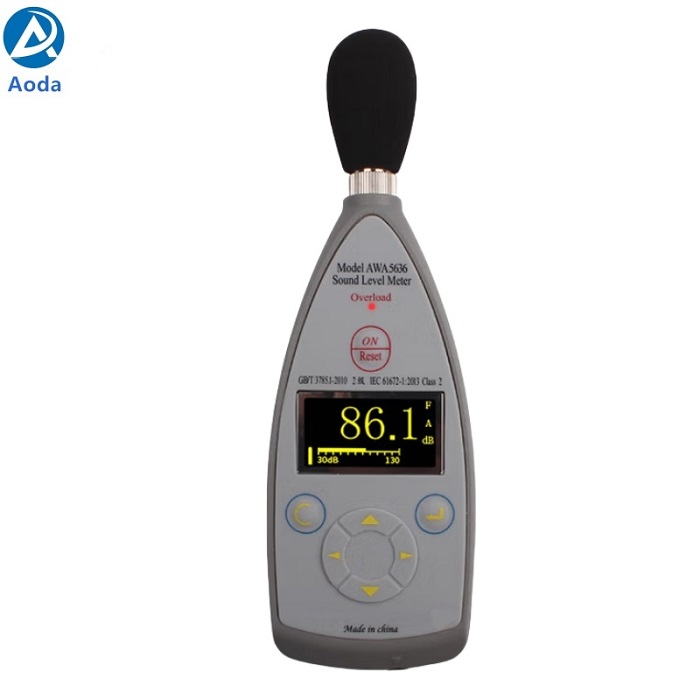

AWA5636 Class 2 Sound Level Meter
AWA5636 Sound level meter is digital and multifunction sound level meter with modular design. Its performance complies with standard IEC 61672-1:2002 Class 2.
Key Features
■ Compact pocket sound level meter
■ 128 × 64 OLED
■ Auto range
■ Complies with IEC61672-2002 Class 2
Application
AWA5636 sound level meter is a digital, modular multifunctional sound level meter. This instrument adopts advanced digital detection technology, with the advantages of high reliability, good stability, wide dynamic range, no need for range conversion, etc.
It can be widely used in various machines, vehicles, transmission, electrical and other industrial noise measurements, and can also be used for environmental noise, labor protection, industrial hygiene measurements.
Technical Specifications
model | AWA5636-1 | AWA5636-2 | AWA5636-3 | AWA5636-4 |
Measuring parameters | Lp,Lmax | Lp,Lmax,Lmin,SEL, E, Leq,T, Tm | Lp,Leq1s, Lmax | LFp,LSp,Lip,Leqt, Lpeak, Leq,T,LFmax, LFmin,LSmax,LSmin, LImax,LImin,SEL, Lex8h,LAVG,TWA, DOSE,L5,L10,L50, L90,L95,SD,Ts,Tm, Volt,Date,Time,E |
microphone | AWA14421 | |||
Frequency weighing | A,C,Z | |||
Time weiging | F,S | F,S,I | ||
Frequency range | 20Hz~12.5KHz | |||
Measuring range | 30dB(A)~130dB(A) | |||
Self-generated noise | <25dBA | |||
output | AC,DC | AC,DC,RS232 | ||
A/D bits | 32KHz | |||
Integrating function | NO | YES | ||
Statistical Analysis Function | NO | YES | ||
Integral Time | NO | Manual,10s,1m,5m, 10m,20m,30m,1h, 2h,4h,8h,12h,16h,24h | 1s~24h | |
Data Storage | NO | YES,8000 Groups | ||
Recoding & Data logging Function | NO | Optional(software authorized） | ||
Overrun instructions | NO | YES, Limits can be setted | ||
Power Supply | battery 4×LR 6 | battery 4×LR 6 or Lithium battery | ||
Dimension | 210×48×27 mm | |||
Weight | 0.3kg | |||
Working Temperature | -10℃～50℃ | |||
