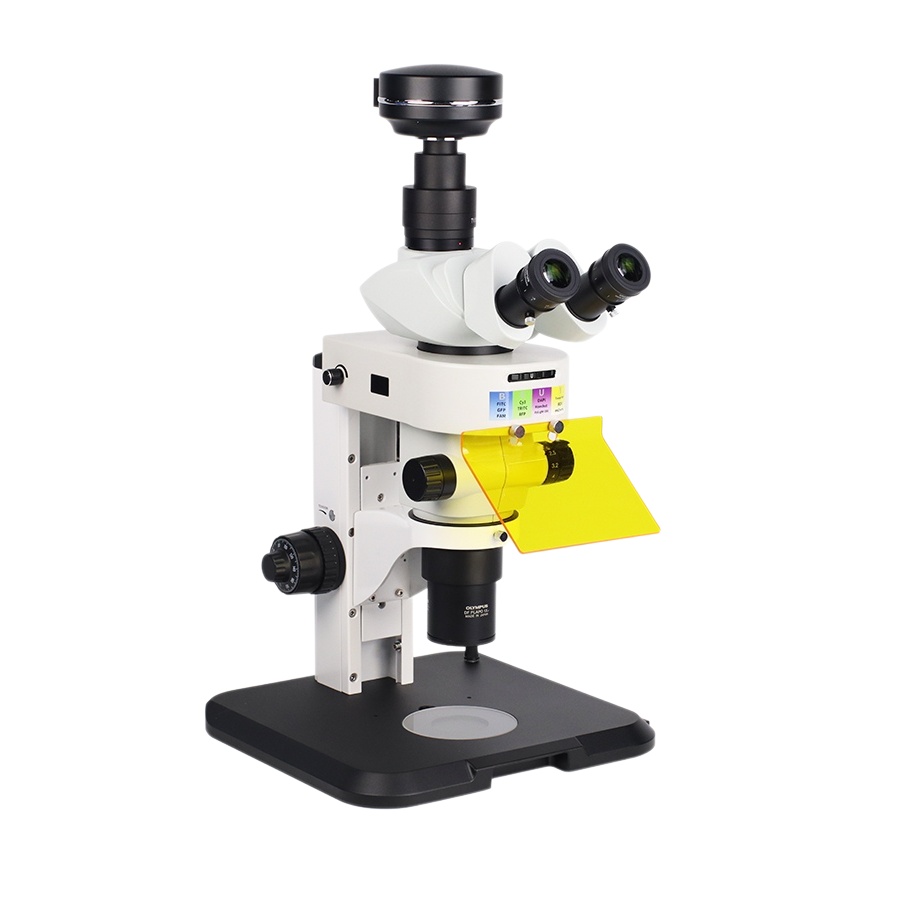

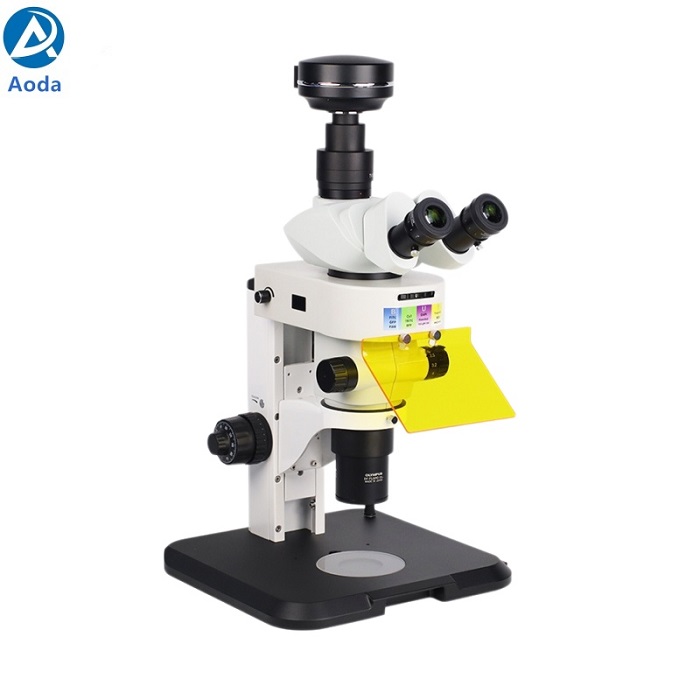

AODA MZX81 Scientific Grade Stereo Fluorescence Microscope

AODA MZX81 Scientific Grade Stereo Fluorescence Microscope

MZX81 stereo fluorescence microscope features an outstanding infinity-corrected parallel optical system and a dual-path LED fluorescence illumination design. With its superior performance, it is an ideal tool for applications such as in vivo animal imaging; classification of *Drosophila* species and screening of fluorescent larvae and anesthetized adults; identification and screening of motile nematodes; and the identification and observation of zebrafish, mouse, and chicken embryos.

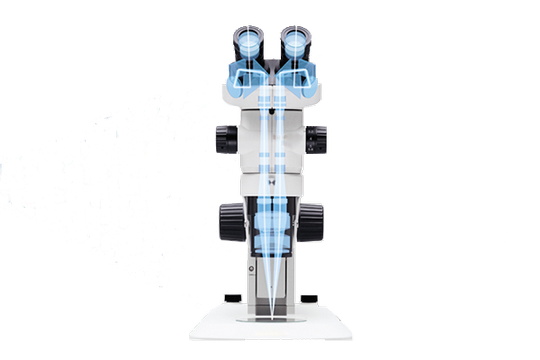

Galileo optical system and coaxial illumination:

■Adopt Galileo optical system and lead-free optics providing clear, accurate specimen observation without strain.

■Reflected fluorescence unit with coaxial illumination allows clear,bright observation even with weakly emitting specimen.

■Zoom radio 7:1 and magnification range 8X-56X, working distance is 90mm.

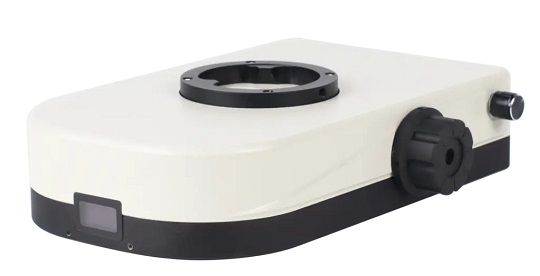

Fluorescence illuminating of LED light

■Modular design fluorescence attachment eliminates extra lamp house and power supply, and is easy to use and maintain.

■Cold LED illumination greatly reduces the damage of heat conduction to living specimens.

■Excitation wavelengths 380nm-420nm, 460nm-490nm, 510nm-550nm, and 540nm-580nm are optional.

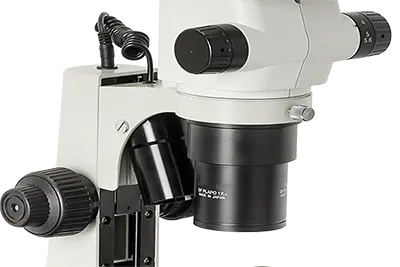

High clarity objectives

■Infinity plan achromat objective 1X, N.A 0.1, working distance 90mm, field of view 27.5-3.9mm.

■Optional objective: 2X, working distance 33.5mm,field of view 13.8-1.9mm.
