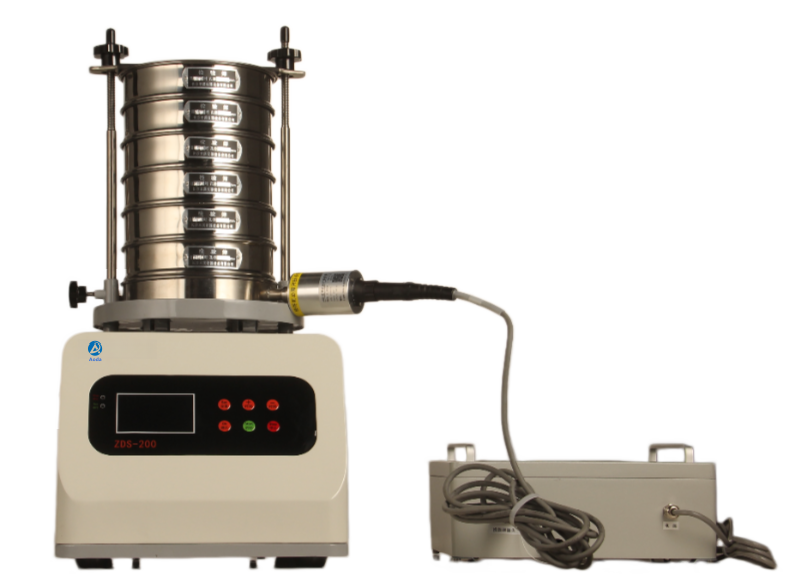

AODA ZDS-200C Ultrasonic sieve machine
ZDS-200C ultrasonic sieving machine is widely used in industries requiring high-precision sieving and filtration—such as agricultural research, mining, construction, chemicals, pharmaceuticals, and food processing.
Offering high precision, it effectively resolves screening challenges caused by agglomeration, static electricity, and strong adsorption that can clog mesh openings, representing a major technological breakthrough in
the domestic sieving industry.
It prevents sample contamination, and nylon mesh screens can be selected for sample processing.
● Ultrasonic vibration screening offers high efficiency and is suitable for screening all types of powders and liquids.
● Compact size saves space and ensures easy portability.
● The unit accommodates up to eight test sieves (including the bottom pan), allowing for the precise separation of granular material into 2–7 size fractions simultaneously.
● Features an automatic shut-off timer.
● Ensures experimental repeatability.
● Low noise and lightweight design.
● Sieve mesh available in stainless steel or nylon.
Vibration sieve machine parameters | |
Sieve size(Dia * H) | 200mm*50mm |
Layer of sieves | 6 |
Screening particle size | 0.025~3mm |
Screen mesh material | Nylon / Stainless steel |
Screen mesh selection range | 5-1000 mesh |
Power supply | 220/50 (v/Hz) |
Power | 0.12KW |
Noise level | ＜50dB |
Amplitude (mm) | 0~3 |
Vibration frequency | 1440 times/min |
Ultrasonic generator parameters | |
Power Input | AC220V±10% 50~60Hz |
Total Power Consumption | 80~120W |
Total Current | ≤0.5A |
High-Frequency Current | ≤0.4A |
Operating Frequency | 28-40KHz |
Operating Mode | Dual-frequency vibration |
Ambient Temperature | -10~40℃ |
