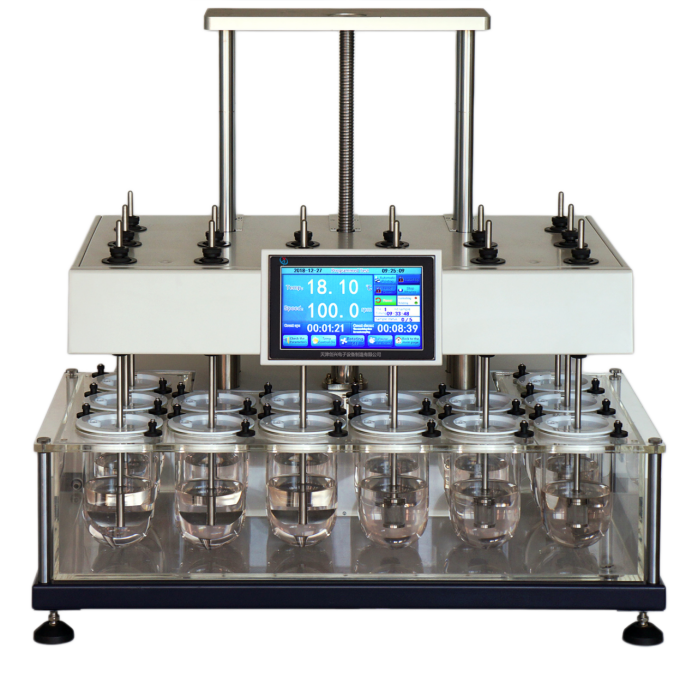

AODA Dissolution Testing machine 14 buckets

AODA  Dissolution Testing machine 14 buckets

Economical 14-blade model, commonly used in small and medium-sized pharmaceutical factories and university laboratories.

1.Adopts a high-resolution color touch screen, which is convenient and fast to operate, precise to control.

2.adopts a high head structure design form; The space between the lower edge of the machine head and the water tank is larger. It is conducive to medication administration, sampling or fluid replacement operations,the retrieval and placement of the dissolution cup is also easy and convenient.

3.System permission management: multi-level, multi user (login method: username + password).

4. Audit tracking records: Multiple content and parameters for long-term preservation.

5. The design of no gap between the dissolution cup and the water tank ensures automatic center positioning. Eliminate system errors.

6. The instrument provides options for "basic test" and "program test", and the basic test function can change the test parameters at any time as needed, making it convenient for research experiments. The program testing function can execute 16 preset test programs, making it convenient for routine repetitive testing.

7. The instrument provides intelligent temperature calibration function, allowing users to easily, conveniently and reliably complete temperature calibration and calibration through interactive operation.

8. The operation monitoring interface of the instrument provides users with 7 real-time data display windows; Real time display of temperature, speed, cumulative timing display, current waiting sampling times, current "nth" sampling time, remaining time waiting for the current "nth" sampling (countdown), current "year, month, day", "hour, minute, second" display.

9. Provides USB real-time information download and massive test data storage functions. Completely save all data of the experimental process in Excel format.

10.RS232 interface to connect to External printer for data printing.

11.Functions of timing shutdown and automatic pre-heating,self check and automatic protection,various fault alarm prompts and secondary overheating protection.

12.Complies with the 2025 edition of the Chinese Pharmacopoeia, and its main technical indicators also comply with the relevant regulations of USP, BP, and JP.

1. 14 paddles and 14 cups (14 mixing paddles and 14 turnbaskets, 14 185mm high dissolution cups).

2. Perpendicularity of basket paddle (shaft): deviation from vertical direction ≤ 0.5 °

3. Perpendicularity of the dissolution cup: deviation from the vertical direction ≤ 1 °

4. Coaxiality between the dissolution cup and the basket (paddle) axis: deviation from the axis ≤ 1.0mm

5. basket (paddle) axis swing: swing ≤ 0.3mm

6. Basket swing: swing ≤ 0.5mm

7. Depth of basket (paddle): 25 ± 1mm

8. Basket (propeller) shaft speed error: ＜± 4%

9. Medium temperature in each dissolution cup: 37 º C ± 0.3 º C

10. Vibration: ≤ 0.1mil

11. Speed range: 25-250 rpm

12. Speed accuracy resolution: 0.1 rpm

13. Temperature adjustment range of water bath: 5 º C (room temperature) -50 º C

14. Temperature display resolution: 0.01 º C

15. Temperature control accuracy≤  ± 0.2 º C

16. Accumulated timing time: 99 hours, 59 minutes, and 59 seconds. (Basic Experiment Timing)

17. Programmable sampling frequency: 1 to 24 different sampling cycles can be preset

18. Sampling cycle time: 99 hours and 59 minutes per week can be set arbitrarily. The 24 sampling cycles can be countdown in sections or continuously

19. Printing time interval setting≤  1-60 minutes, set at will

20. Continuous working time: 100hours

21. Working noise: <60db

22. Work environment; 5-35 º C relative humidity≤ 80%

23. Electric heating power: 1800W

24.Power supply : AC220V50Hz

25. Net weight 90Kg

26.Dimensions : 91x65x65cm
