MJ-IIV Touchscreen Double-Head Gluten Meter

MJ-IIV Touchscreen Double-Head Gluten Meter

MJ-IIV Touchscreen Dual-Head Gluten Tester consists of a main unit, a gluten indexer, and a gluten drying unit. It can measure the wet (dry) gluten content, gluten index (also known as gluten quality), and gluten water absorption in whole and regular flou...

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service

MJ-IIV Touchscreen Double-Head Gluten Meter

The double-headed gluten analyzer is professionally used to determine the dry and wet gluten content in flour. It is suitable for wheat flour, various wheat milling products, whole wheat flour, etc., and features simple operation, convenient use, and high measurement accuracy.

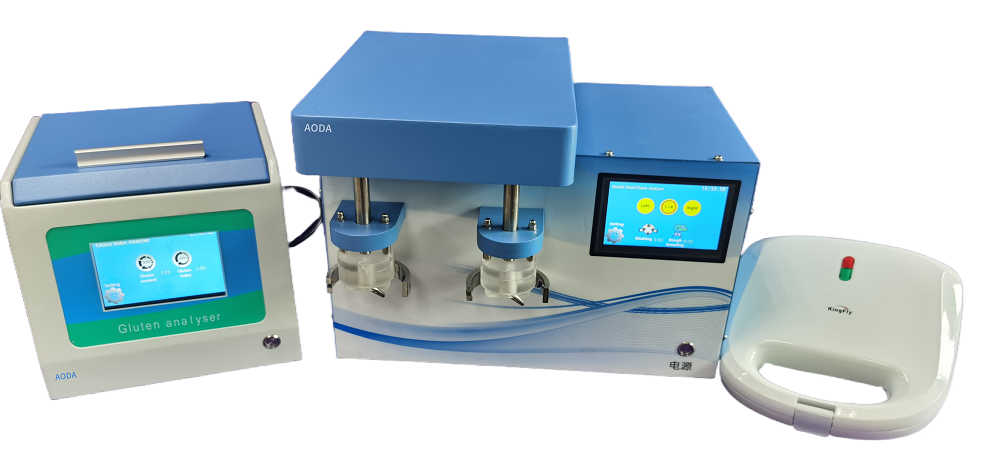

The gluten analyzer consists of three parts: the gluten washer, the gluten index meter, and the gluten drying instrument. It can determine the wet (dry) gluten content, gluten index (also called gluten mass), and gluten water absorption rate in whole wheat flour and ordinary flour. It is particularly suitable for users with a large number of samples and is applicable to the determination of wheat flour and whole wheat flour. It is widely used in food and flour processing, grain and oil quality inspection, grain storage, universities and research institutions, and other departments.



Double-head gluten meter


Fine washing screen specifications

80µm (200 mesh) metal sieve

Coarse washing screen specifications

800µm (26 mesh) metal sieve

Washing liquid flow rate

50mL/min56mL/min

Kneading time

1s120s, Washing time: 115 minutes (both adjustable via the setting key)

Centrifugation time

110 minutes for gluten content and index (adjustable via the setting key), 6000r/min±5r/min

Gluten index

Between 70 and 100, the allowable difference between two measurements should not exceed 11 units;

Below 70, the allowable difference between two measurements should not exceed 15 units

Power supply

Gluten washer AC220V±6%10%, 180W

Gluten index meter AC220V±6%10%, 60W

Gluten dryer AC220V±6%10% 750W

Dimensions and Weight

Gluten washer: 405×320×307 (mm); 14KG

Gluten Index Analyzer: 240×215×247 (mm) ;5KG

Gluten Dryer: 240×230×85 (mm) ;1.5KG
