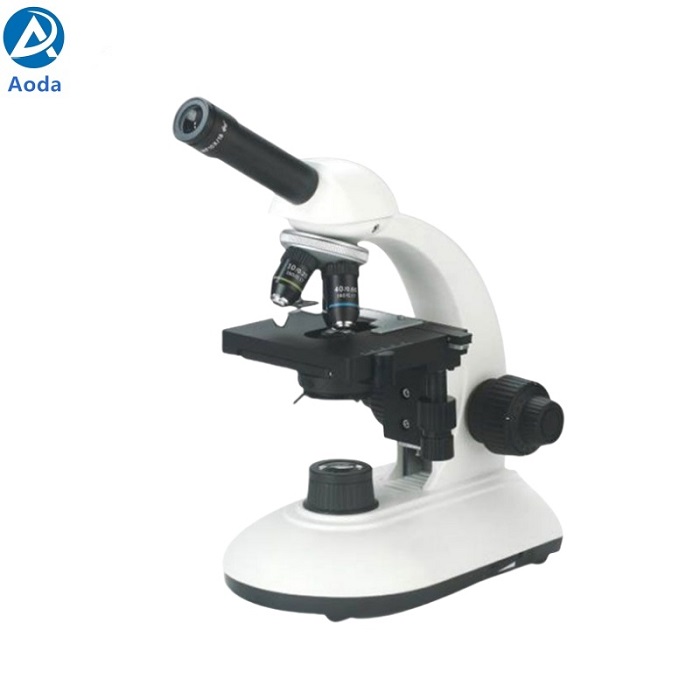

B series Student Biological microscope
B Series Biological Microscope is a student-level biological microscope with an arc-shaped arm design, which is easy to carry and carry....
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
B series Student Biological microscope

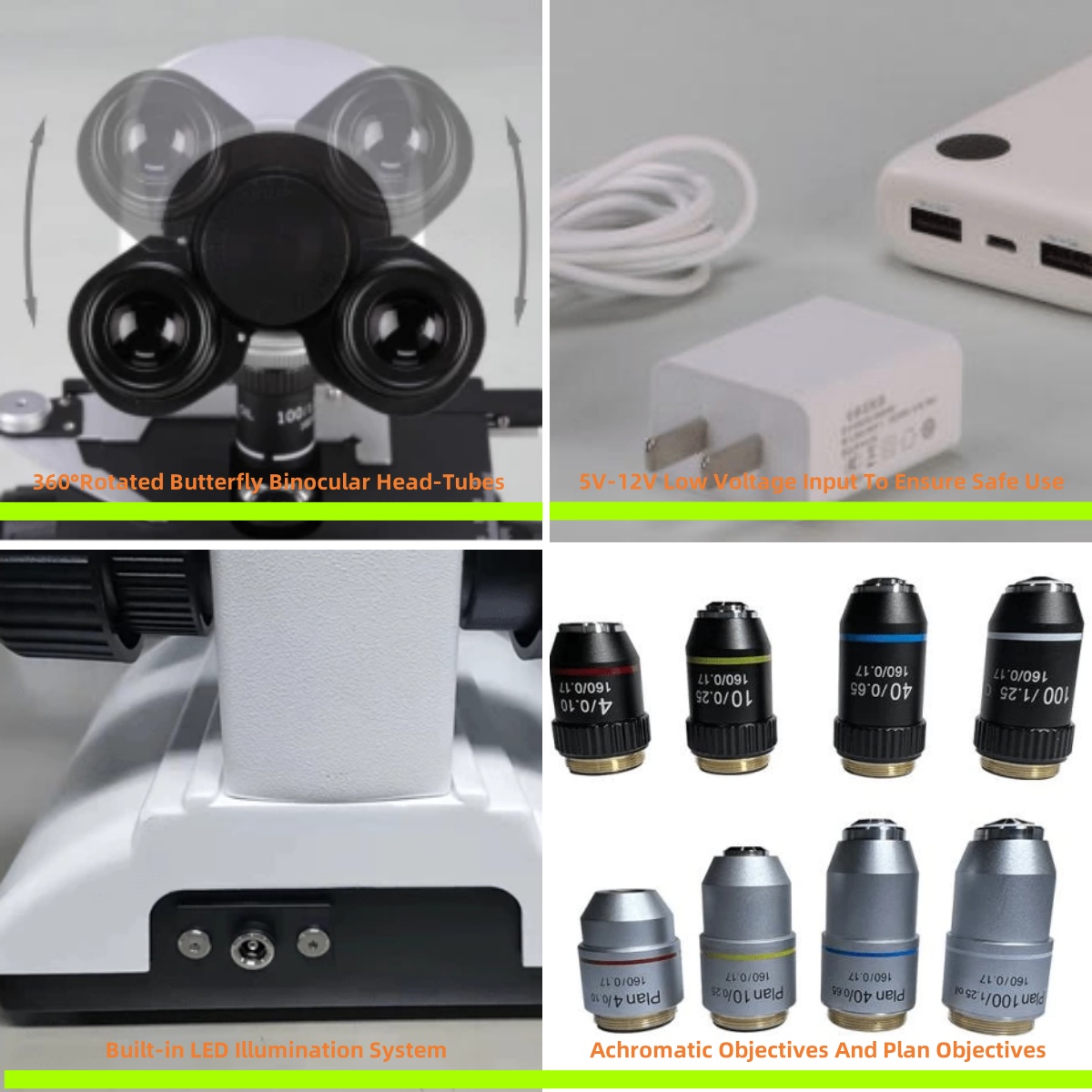

B Series Biological Microscope is a kind of biological microscope. It is a student-level biological microscope with an arc-shaped arm design, which is easy to carry and carry. This series of products all adopt finite-distance optical systems. The objective lens has the difference between achromatic and plan achromatic. At present, only LED low-voltage lighting is provided. According to the head type, it can be divided into monocular, binocular, and trinocular.
| Features of B Series Biological Microscope
| Applications of Student-Level Biological Microscope
Cells: Students can use microscopes to examine the different types of cells that make up the human body and other organisms. They can also observe the structure of cells and how they function.
Tissues: Microscopes can be used to study the different types of tissues that make up organs and other body structures. Students can learn about the different types of cells that make up each tissue and how they work together.
Organisms: Microscopes can be used to examine small organisms, such as bacteria, protozoa, and algae. Students can learn about the structure and function of these organisms and how they interact with their environment.
| Specifications of B Series Biological Microscope

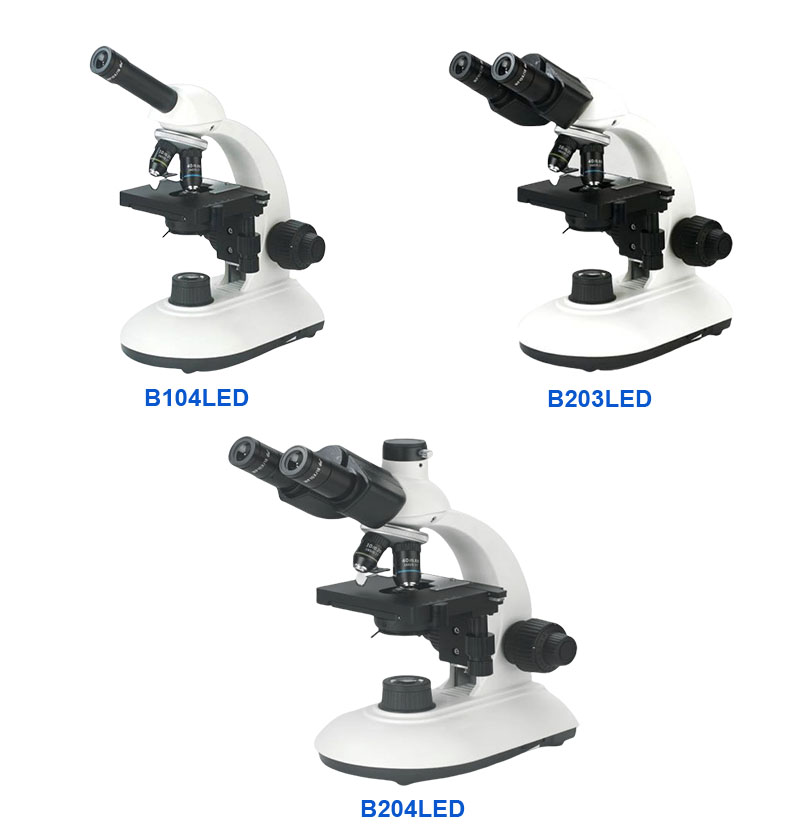

| Items | Specification | B104LED | B203LED | B204LED |
| Eyepiece | WF 10×-18 mm(Pointer is optional) | ● | ●● | ●● |
| WF 10×-18 mm(Pointer) | ○ | ○○ | ○○ | |
| WF 10×-18 mm(adjustable, 0.1 mm) | ○ | ○○ | ○○ | |
| WF 16×-13 mm | ○ | ○○ | ○○ | |
| WF15X/-13 mm | ○ | ○○ | ○○ | |
| AchromaticObjective | 4X/0.10 W.D=18.6mm | ● | ● | |
| 10X/0.25 W.D=6.5mm | ● | ● | ||
| 40 X/0.65 (S) W.D=0.47mm | ● | ● | ||
| 100 X/1.25(S,Oil) W.D=0.07mm | ● | ● | ||
| 20 X/0.40 W.D=1.75mm | ○ | ○ | ||
| 60 X/0.80(S) W.D=0.10mm | ○ | ○ | ||
| Plan Objective | 4X/0.10 W.D.=14.5mm | ● | ||
| 10X/0.25 W.D.=5.65mm | ● | |||
| 40X/0.65(S) W.D.=0.85mm | ● | |||
| 100 X/1.25(S,Oil) W.D.=0.07mm | ● | |||
| 20X/0.40 W.D.=5.65mm | ○ | |||
| Monocular Head | Inclined 30°, Rotatable 360° | ● | ||
| Butterfly Seidentopf Binocular Head | Inclined 30°, Rotatable 360°, Interpupillary Distance 48-75mm | ● | ● | |
| Butterfly Seidentopf Trinocular Head | Inclined 30°, Rotatable 360°, Interpupilary Distance 48-75mm, Light Distribution 20:80 | ○ | ○ | ○ |
| Nosepiece | Quadplex | ● | ● | ● |
| Focusing Knobs | Coaxial Coarse and Fine Focusing Knobs Travel Range: 22mm, Scale: 2µm | ● | ● | ● |
| Mechanical Stage | Stage Size:125mm×115mm, Travel: 35mm×75mm | ● | ● | ● |
| Condenser | Abbe N.A. 1.25(Iris Diaphragm) | ● | ● | ● |
| Dark Field Ring | Available For 4×-40× Objective | ○ | ○ | ○ |
| Polarizing Attachment | Analyzer / Polarizer | ○ | ○ | ○ |
| Mirror | Plano-concave mirror | ○ | ○ | ○ |
| C-mount | 1×/ 0.5×（Focus Adjustable） | |||
| Base | 3WLED Illumination Systems(DC input) | ● | ● | ● |
| External power adapter and data cable | ● | ● | ● |
Note: “●”In Table Is Standard outfits, “○” Is Optional Accessories.

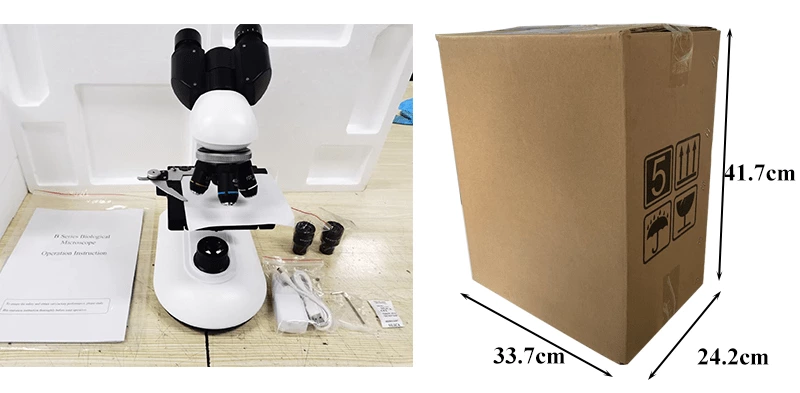

Packing Size: 337mm×242mm×417mm Gross Weight: 6.5 kgs Net Weight: 5.0kgs
